Dead End Clamp

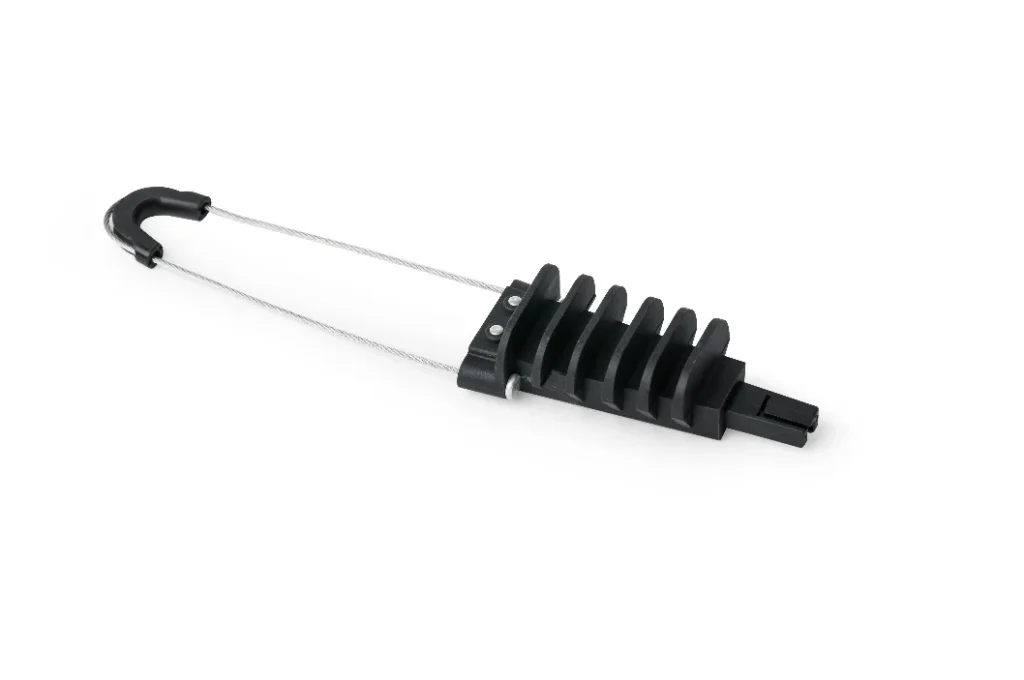

2.1 Type 16-25mm² Dead end clamp

2.1 dead end tension clamp for 16-25mm² insulated service lines, UV-resistant, high-strength material, easy tool-free installation, secure anchoring on poles or walls, NFC 33-042 compliant.

Request a Quote

Application

2.1 tension clamp is used to anchor and tighten insulated service line on poles or walls.

 Feature

  1. 1 tension clamp is made of weather resistant and anti-UV material with high mechanical strength.
  2. Easy installation without any additional tool.
  3. No loose parts could fall off during installation.
  4. Standard:NF C 33-042

 Datas

2

Type Cross section(mm²）
STA 1*10/1*16
STB 2*16/2*25
STC 4*16/4*25
STD 1*16/1*70
LA1 4*16/4*25
LA2 2*6/2*16
DCR-1 1*4/1*25
DCR-2 2*4/2*25
2.1 16-25
PA1500 25-50
PA2000 54.6-70
