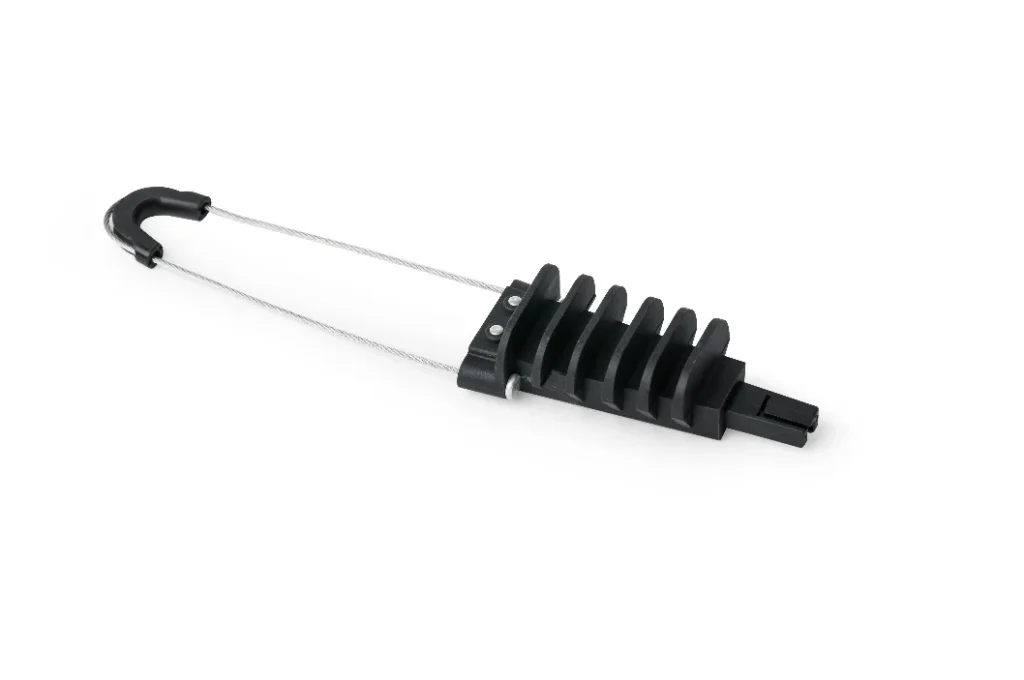

2.1 Type 16-25mm² Dead end clamp
2.1 dead end tension clamp for 16-25mm² insulated service lines, UV-resistant, high-strength material, easy tool-free installation, secure anchoring on poles or walls, NFC 33-042 compliant.
Application
2.1 tension clamp is used to anchor and tighten insulated service line on poles or walls.
Feature
- 1 tension clamp is made of weather resistant and anti-UV material with high mechanical strength.
- Easy installation without any additional tool.
- No loose parts could fall off during installation.
- Standard:NF C 33-042
Datas
| Type | Cross section(mm²） |
| STA | 1*10/1*16 |
| STB | 2*16/2*25 |
| STC | 4*16/4*25 |
| STD | 1*16/1*70 |
| LA1 | 4*16/4*25 |
| LA2 | 2*6/2*16 |
| DCR-1 | 1*4/1*25 |
| DCR-2 | 2*4/2*25 |
| 2.1 | 16-25 |
| PA1500 | 25-50 |
| PA2000 | 54.6-70 |
