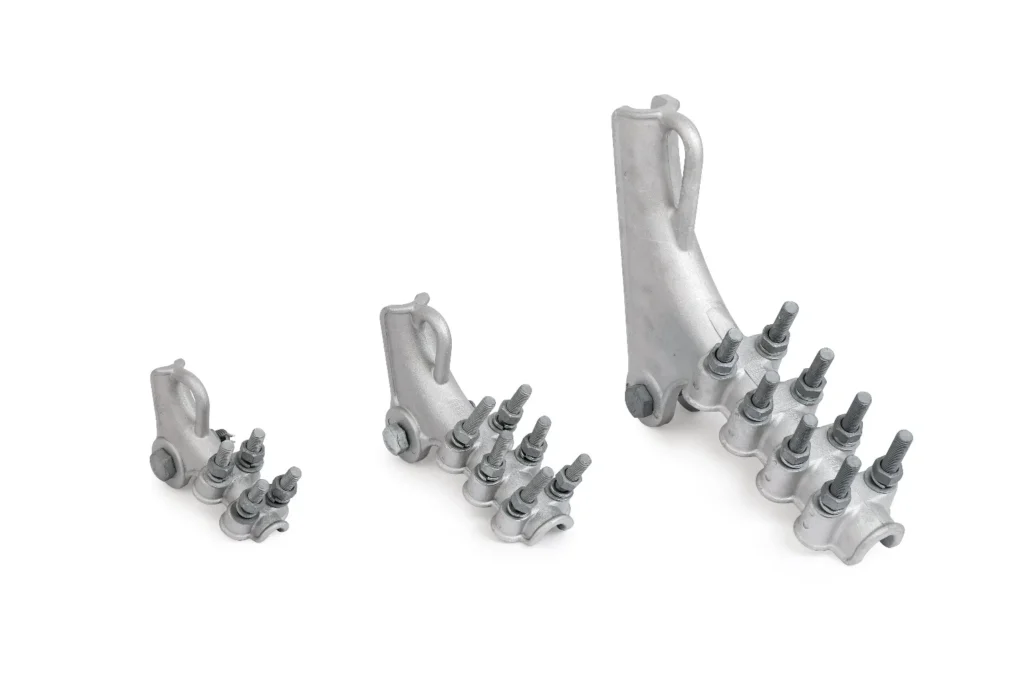

Bolt type strain clamp NLL series Dead end clamp
NLL bolt type strain clamp for aerial lines up to 35kV, made of high-strength aluminum alloy, smooth surface for long service life, easy installation, reliable insulation protection and secure conductor anchoring.
Application
NLL series aluminum alloy strain clamp(Bolt type) is suitable for aerial line up to 35kV,fixing aluminum wire or steel core minium wire on the strain pole,aerial insulation aluminum conductor and insulation aluminum cover are being used tofether,and the action is insulation protection.
Features
- The body is made of high-strength
- Smooth surface long servile life
- Easy installation
- No waste electric energy
Datas
| TYPE | Conductor dia (mm) | U bolts | Breaking load (kN) |
|
| Dia | Qty | |||
| NLL-1 | 8.0-12.0 | 12 | 2 | 40 |
| NLL-2 | 12.0-16.0 | 12 | 2 | 60 |
| NLL-3 | 16.0-18.0 | 14 | 3 | 70 |
| NLL-4 | 18.0-22.5 | 14 | 3 | 90 |
| NLL-5 | 22.5-29.0 | 16 | 4 | 120 |
| NLL-6 | 26.0-32.7 | 18 | 4 | 120 |
