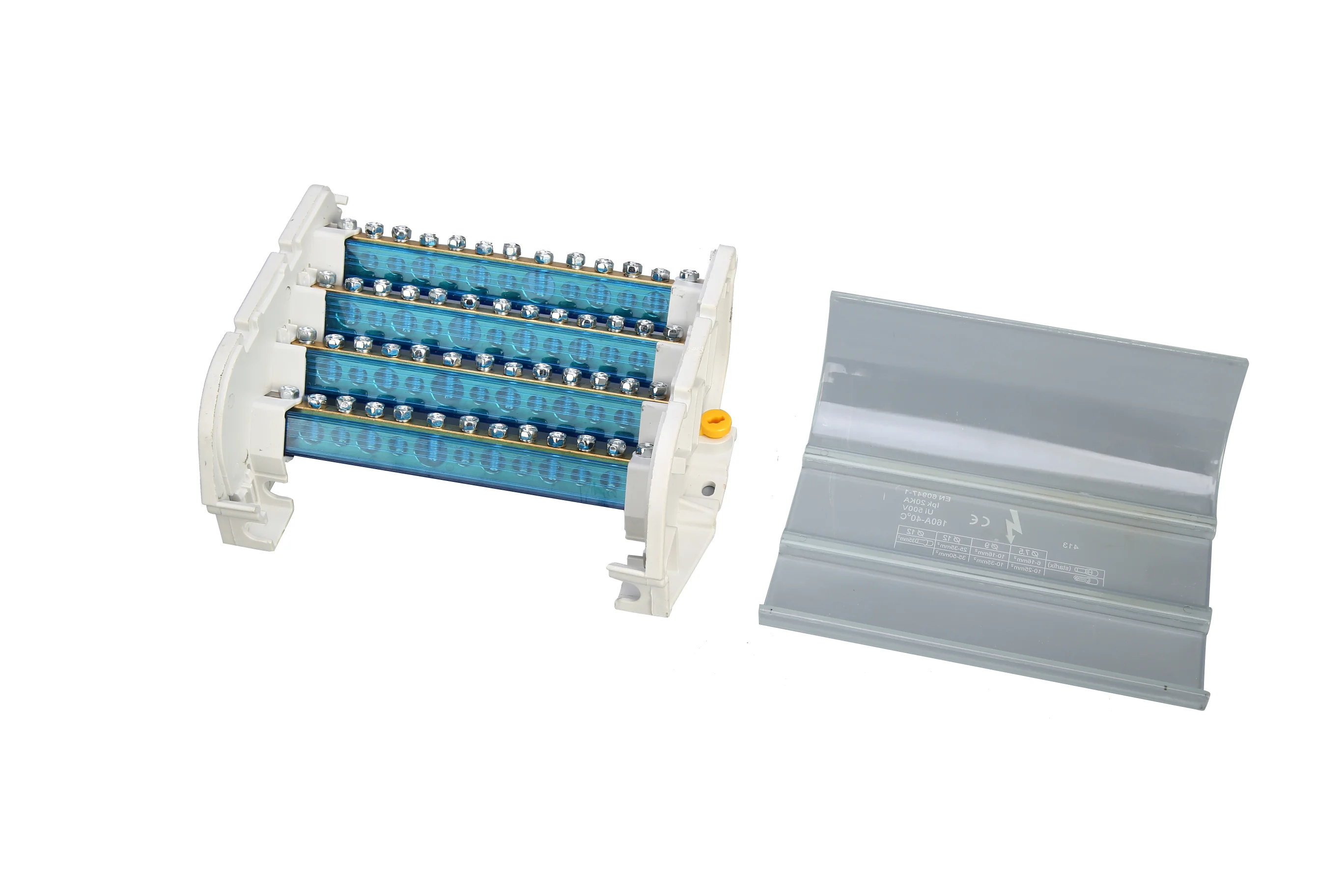

Quad Pole Junction Box C01-413

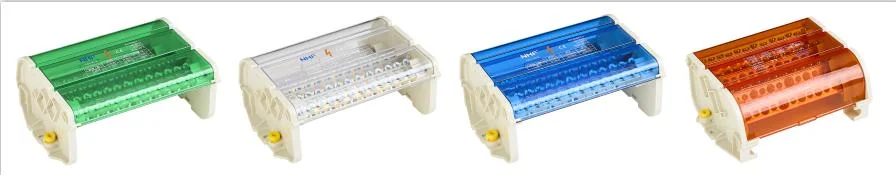

Regular color: blue. Other colors are available upon request.
| Certifications | CE ROHS | ||
| Dimensions and Materials | |||
| L × W × H(mm) | 180x138x74 | ||
| Screw Material | Iron,Galvanize | ||
| Conductor Material | Brass | ||
| Plastic Housing | PC.ABS /V-0 | ||
| Transparent Cover | PC | ||
| Mounting Method | 35mm guide rail and screw fixation | ||
| Electrical Performance | |||
| Reference Standard | IEC 60947-7-1 | ||
| Rated Voltage(V) | 500 | ||
| Rated Current(A) | 160 | ||
| Impulse Withstand Current/IPk (KA) | 20 | ||
| Wiring Parameters | |||
| Input | A | B | C |
| Number of interfaces | 25 to 50 X4 | ||
| Tightening Torque(N.m) | 3~5 | ||
| Interface Diameter(mm) | 12 | ||
| Rigid Wire Diameter(mm2) | 35~50 | ||
| Flexible Wire Diameter (mm2) | 25~35 | ||
| Output | A | B | C |
| Number of interfaces | 10 to 35 X16 | 6 to 16 X32 | |
| Tightening Torque(N.m) | 2~3 | 2~3 | |
| Interface Diameter(mm) | 8.5 | 6.5 | |
| Rigid Wire Diameter (mm2) | 25~35 | 10~16 | |
| Flexible Wire Diameter(mm2) | 10~25 | 6~10 | |
