Insulation Piercing Connector

CD series Insulation piercing connector

CD insulation piercing connectors are applicable for low voltage aerial cables.These connectors are used to establish T-connections and Joint-connections.Main line is pierced by teeth without being stripped of insulation while tap line should be stripped of insulation before being inserted into the hole.Shear head bolts applied for main line.

Request a Quote

Feature

  1. Used for branch connection
  2. Main line:insulated aluminum cable
  3. Tap line:bare aluminum cable or bare copper cable
  4. Connector body is made of aluminum allow with high mechanical strength and ensures stable performance.
  5. Special designed shear head bolt allows efficient installation within specific shear-off torque.Constant force ensures teeth penetrate cable without damaging mechanical strength of conductor.
  6. Insulation sheath probides superior waterproof.

Standard:EN 50483-4,NF C 33-020,NF C 33-004

Datas

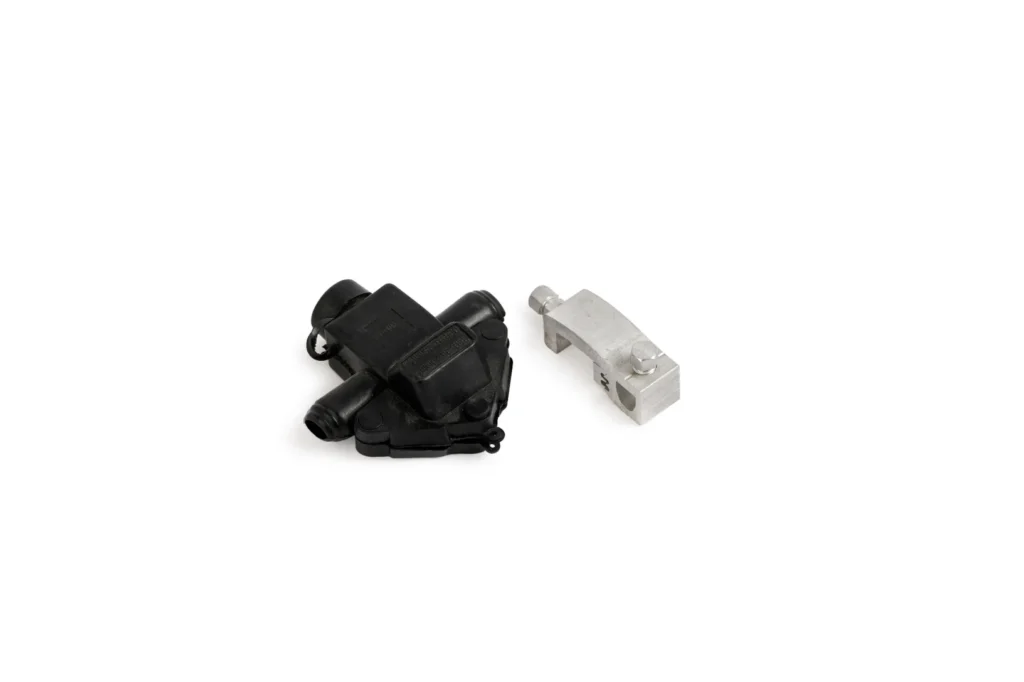

CD series1

Type Main line
(mm²)		 Branch line
(mm²)
CD-70 16-70 1.5-35
CD-150 50-150 4-50
