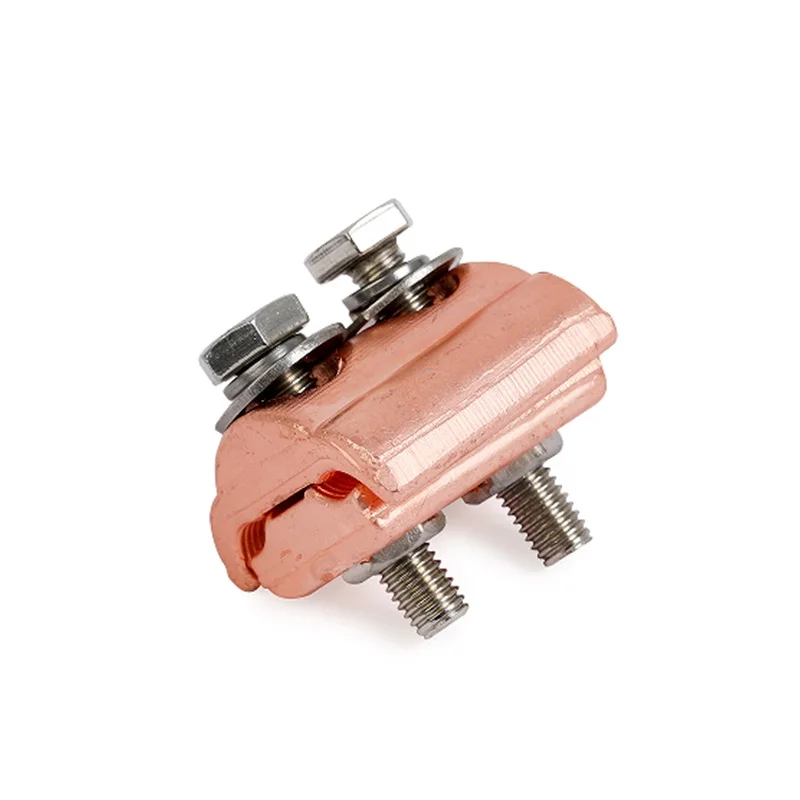

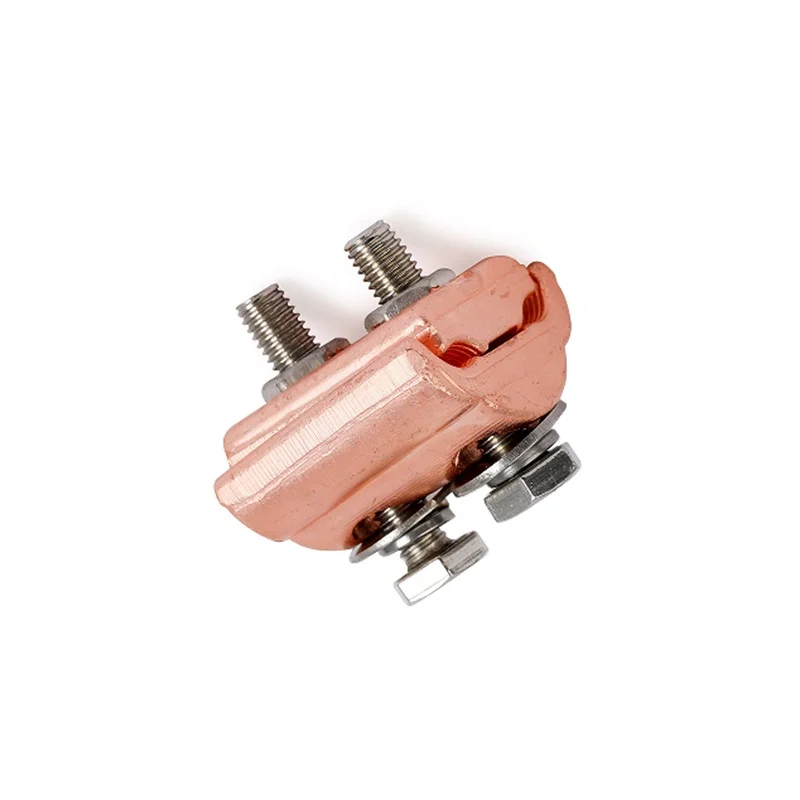

CUPG Series Copper PG Clamp

CUPG copper PG clamp connects parallel copper conductors, forged copper body with serrated grooves for maximum contact, stainless bolts and Belleville washers ensure stable, low-resistance connections under cyclic loads.

Request a Quote

Application

CUPG clamp was designed to connect two parallel bare conductors.Conductors can be copper stranded or rods.Material is forged copper for copper to copper connection throughout the conductor range.For tap-off connection of copper conductors.

 Structure Feature

1.The clamps have serrated transverse grooves for maximum conductor contact.

2.Stainless bolts and utilize Belleville washers to prevent thermal ratcheting under cyclic loads.

Datas

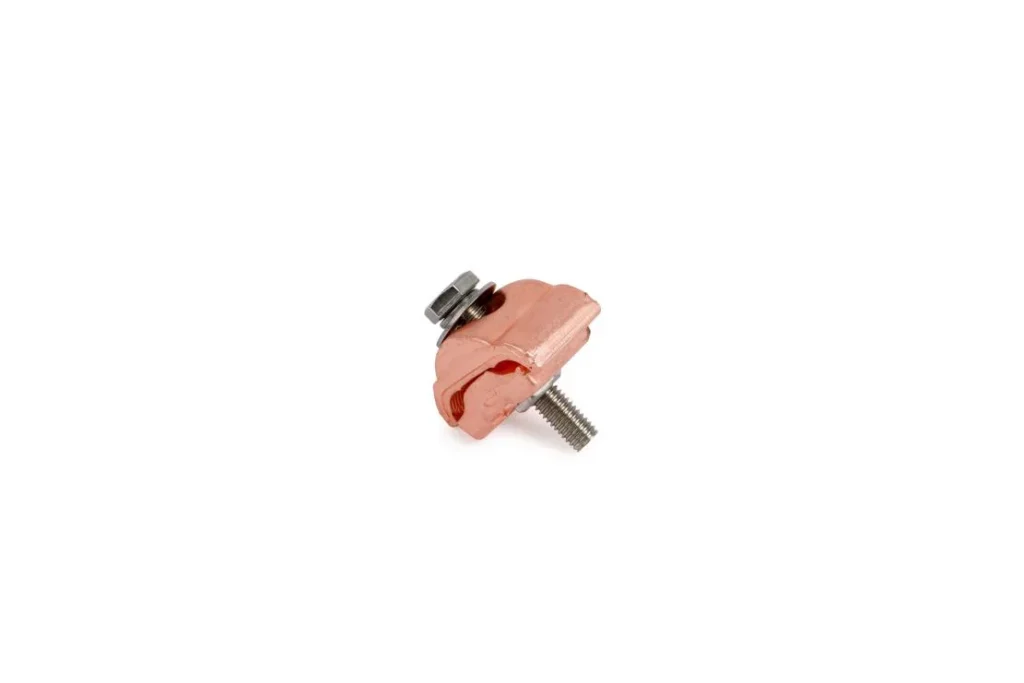

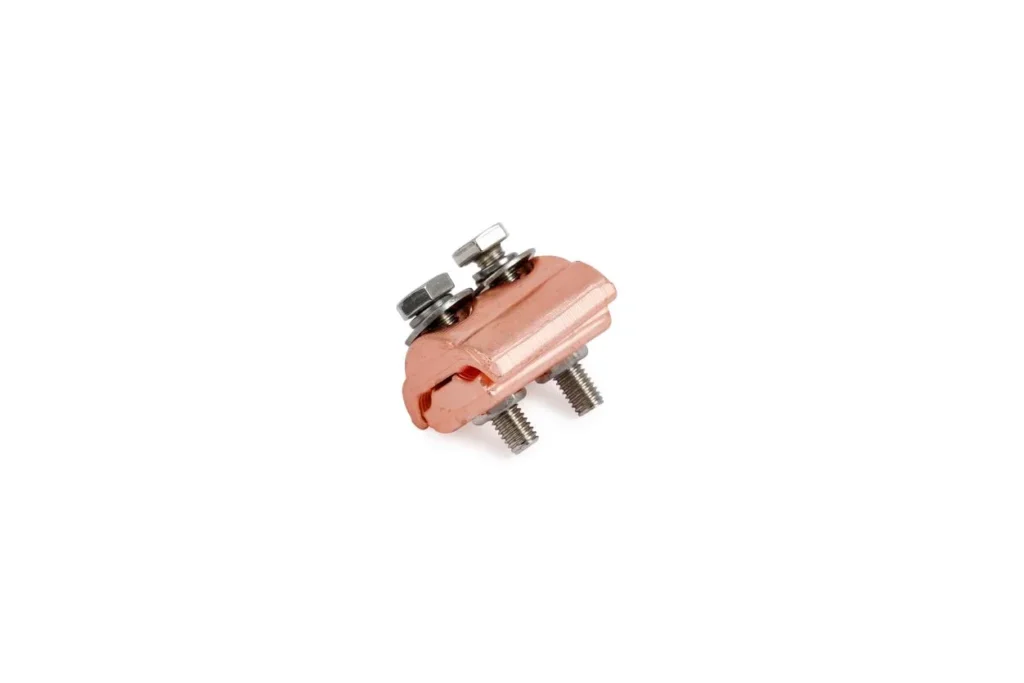

CUPG Series Copper PG Clamp (5) CUPG Series Copper PG Clamp (6)

Type Conductor Cross-section(mm²） Bolt
APG-A1 AL16-70 1*M8*40
APG-A2 AL25-150 1*M8*45
APG-B1 AL6-35 2*M6*35
APG-B2 AL16-70 2*M8*45
APG-B3 AL25-150 2*M8*50
APG-B4 AL25-240 2*M10*60
APG-B5 AL35-300 2*M10*70
APG-C1 AL16-70 3*M8*45
APG-C2 AL25-150 3*M8*50
APG-C3 AL25-240 3*M10*60
APG-C4 AL35-300 3*M10*70
