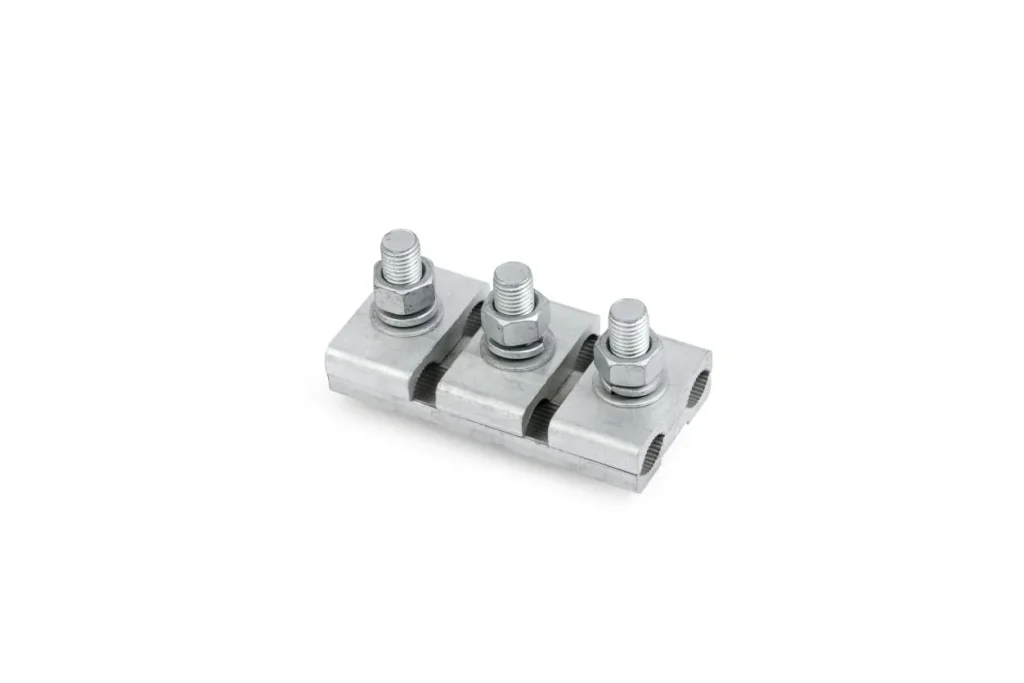

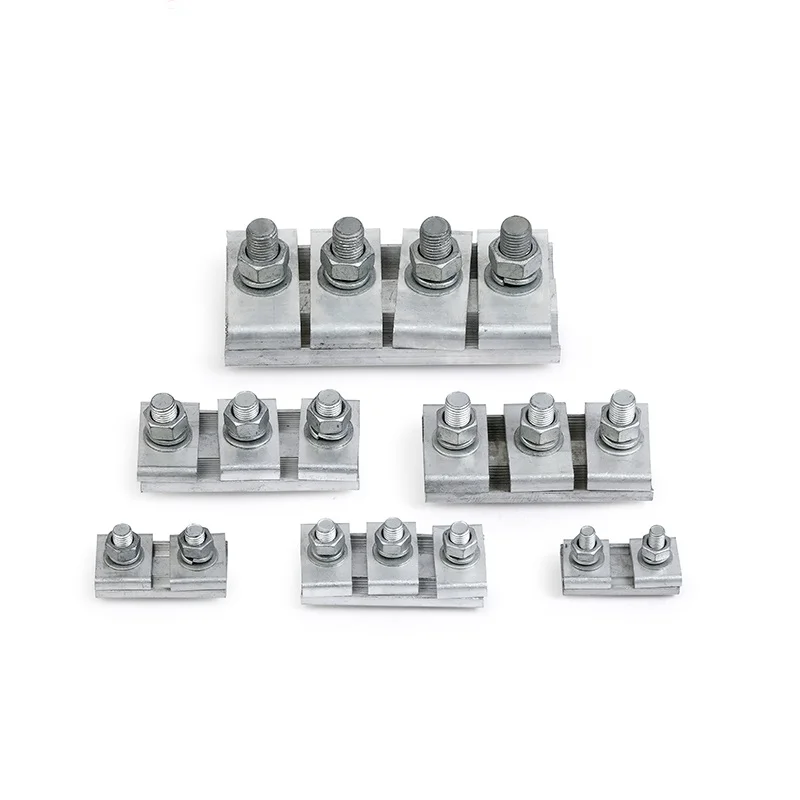

JB Series Aluminum PG Clamp
JB Series Aluminum PG Clamp for Main and Tap Conductors, High Corrosion-Resistant Aluminum Alloy, Shear Head Bolt, Reliable Electrical Connection.
Application
JB series main and tap conductor for aluminum,aluminum alloy conductor.
Structure Feature
1.Body is made of high corrosion resistant aluminium alloy.
2.Overtorque breaking shear head allowing a good clamping torque.

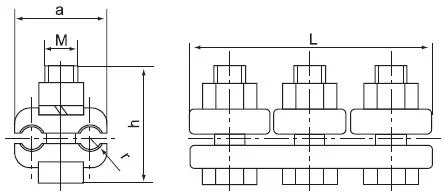

Datas
| Type | Conductor Cross-section(mm²） | Bolt |
| JB-0 | 16-25 | 2*M10*45 |
| JB-1 | 35-50 | 2*M12*45 |
| JB-2 | 70-95 | 3*M12*45 |
| JB-3 | 120-150 | 3*M16*65 |
| JB-4 | 185-240 | 3*M16*70 |
