JB Clamp

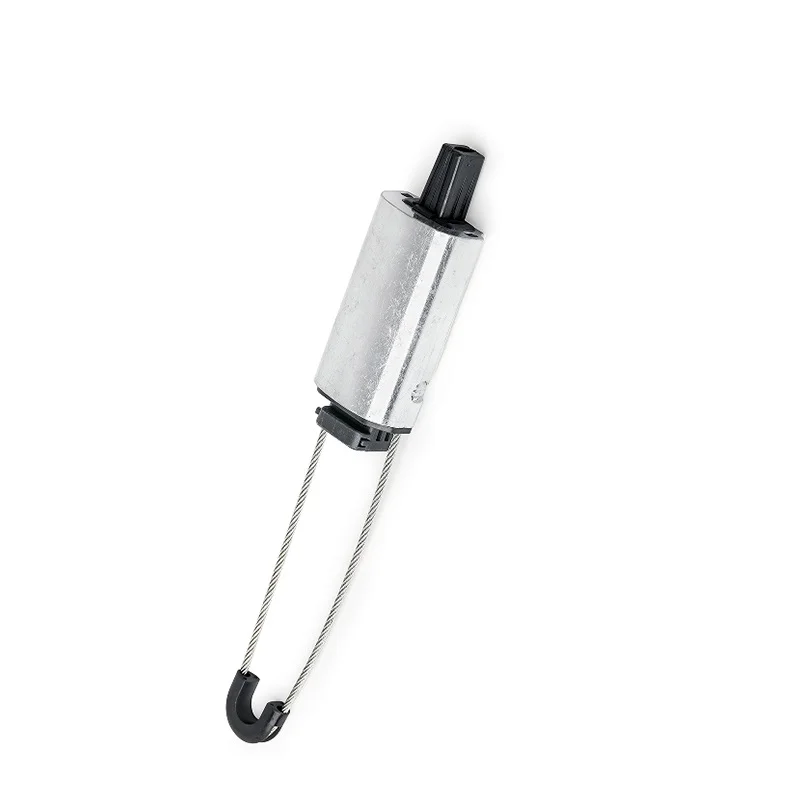

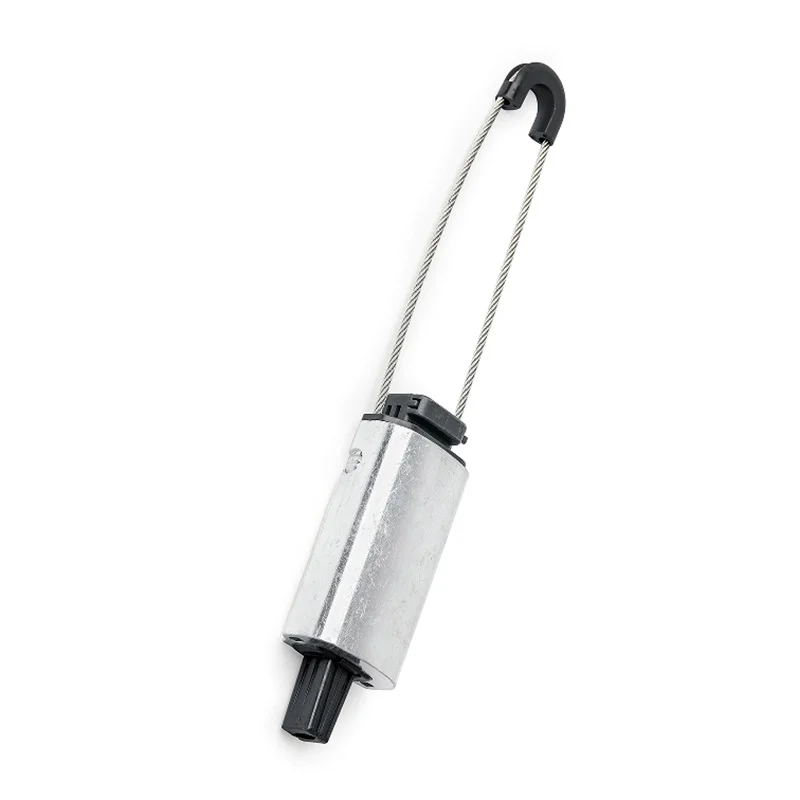

JBG series Aluminum PG Clamp

JBG dead end clamp anchors LV aerial cables with insulated neutral messenger, corrosion-resistant aluminum body, UV-resistant wedges, steel support, easy installation, EN 50483-3 and NF C33-041 compliant.

Request a Quote

Application

JBG tension clamp are used to anchor and tighten low voltage aerial cables with insulated neutral messenger.

Features

  1. Body is made of corrosion resistant extruded aluminum alloy.
  2. Metal support is made of stainless steel or steel.
  3. Wedges are made of weather resistant and anti-UV material with high mechanical strength.

 Standard:EN 50483-3,NF C33-041

Datas

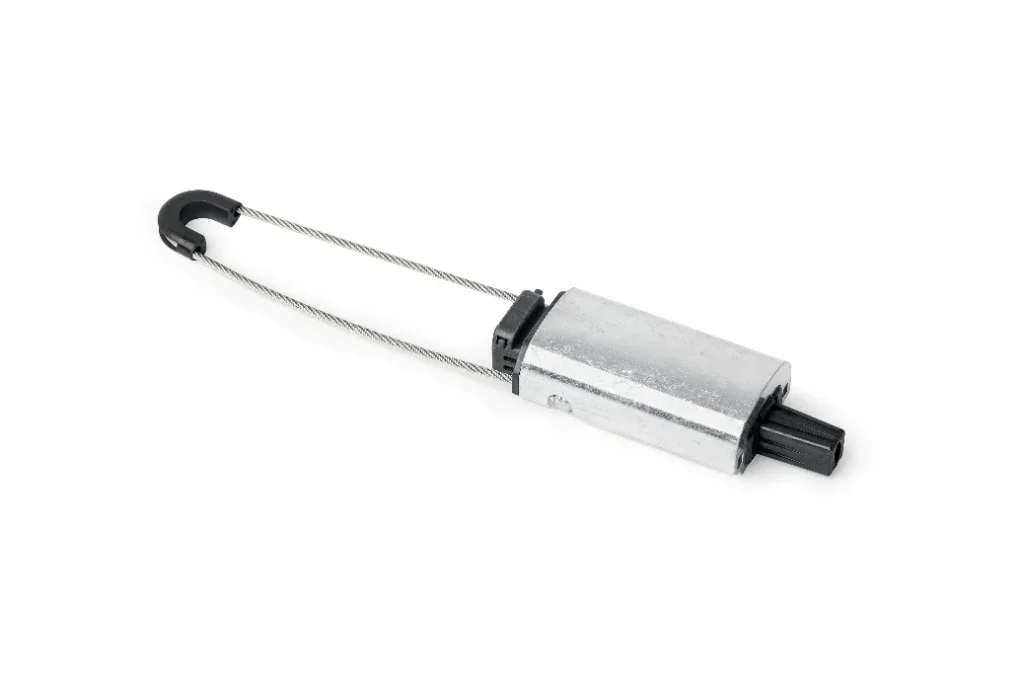

JBG series 5

Type Cross section(mm²） Breaking load
JBG25-35/1000 25-35mm² 10kN
JBG54.6-70/1500 54.6-70mm² 15kN
JBG70-95/2000 70-95mm² 20kN

Notice:We provide a variety of bracket for Anchoring Assemblies.Specifications of bracket see anchor bracket.

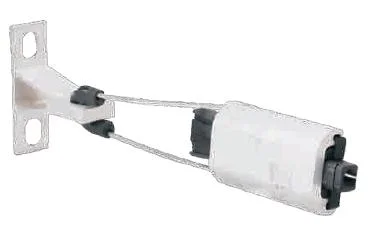

JBG series 6
