JB Clamp

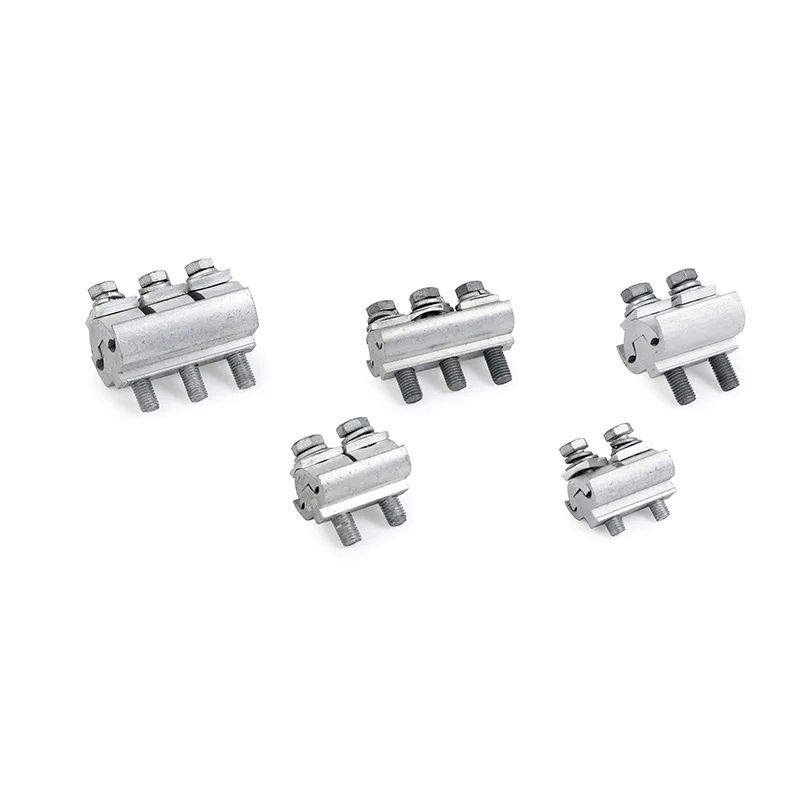

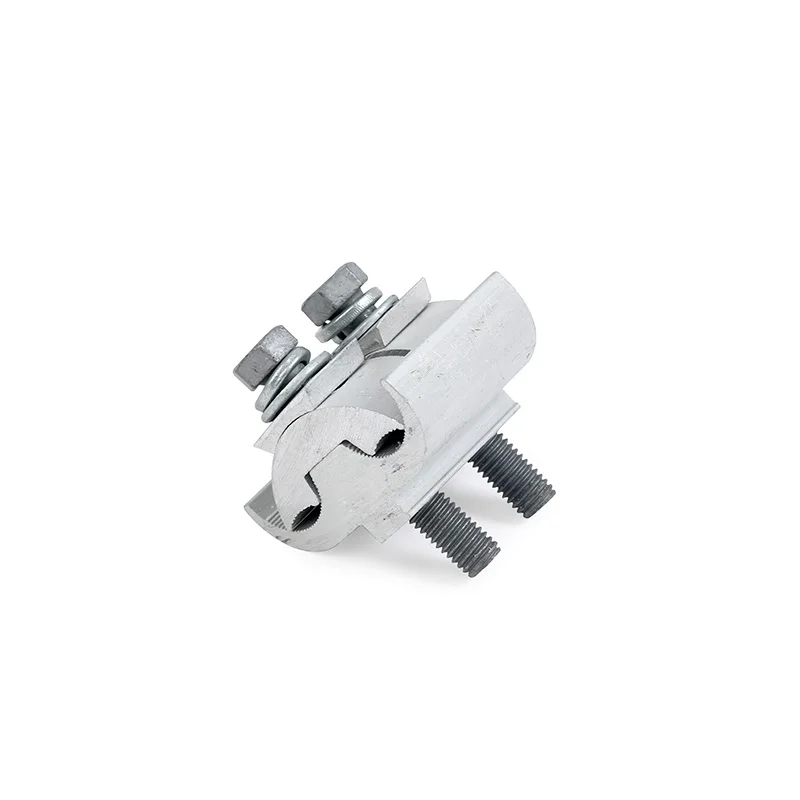

JBL Series Aluminum PG Clamp

JBL aluminum PG clamp for aerial wire splicing and branching, oxidation-resistant alloy body, teeth structure ensures low contact resistance, secure and reliable electrical connections with insulation sheath support.

Request a Quote

Application

JBL series specific forms parallel groove clamp is suitable for unendure force splicing and branch on the aerial wire.It has the function of protection and insulation when it matches insulating sheath.

Structure Feature

1.Select oxidize-resistance aluminium alloy.

2.Teeth-shape structure,touch with lowly resistance,reliable splicing.

Datas

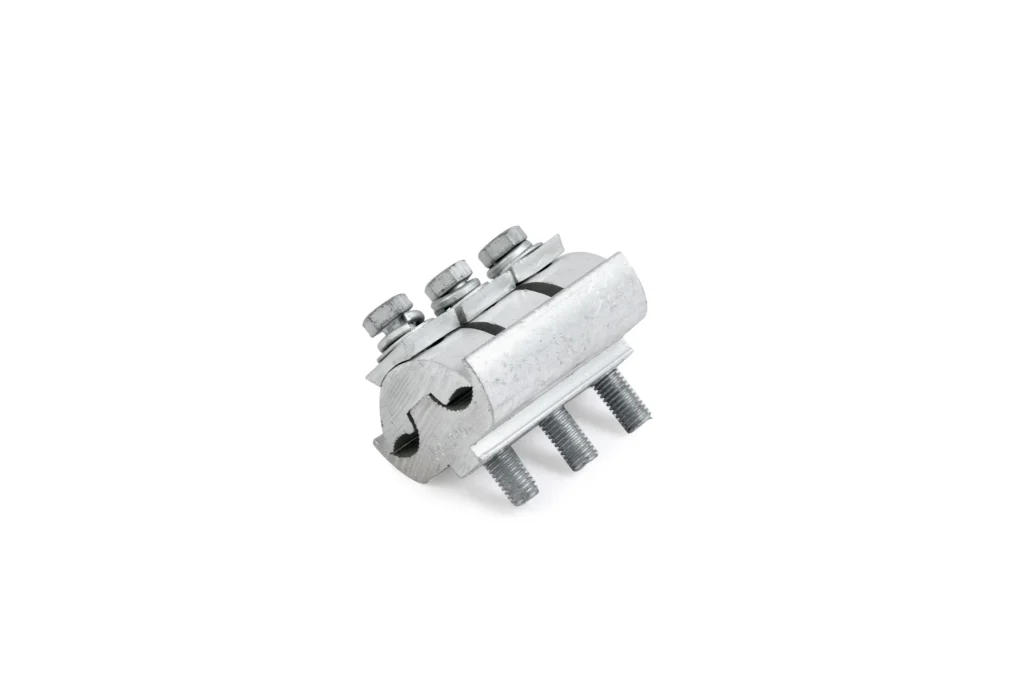

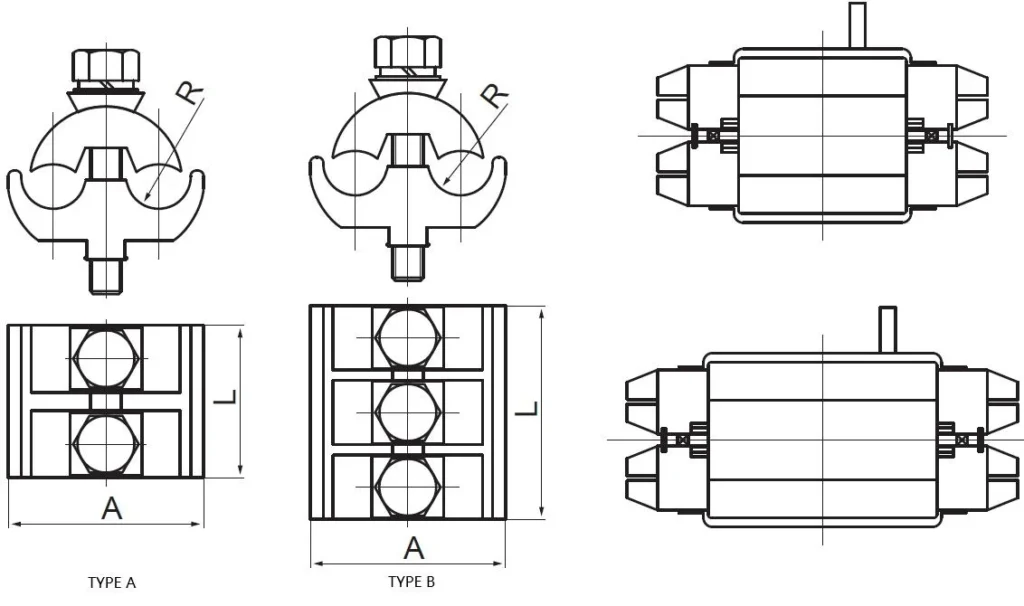

 JBL-H

JBL Series Aluminum PG Clamp 4 JBL Series Aluminum PG Clamp 5

Type Conductor Cross-section(mm²） Bolt
JBL-H-1A 16-70 2*M8*50
JBL-H-2A 16-120 2*M10*55
JBL-H-3A 50-240 2*M10*70
JBL-H-2B 16-120 3*M10*55
JBL-H-3B 50-240 3*M10*70
Notice:A type is 2 bolts,B type is 3 bolts.

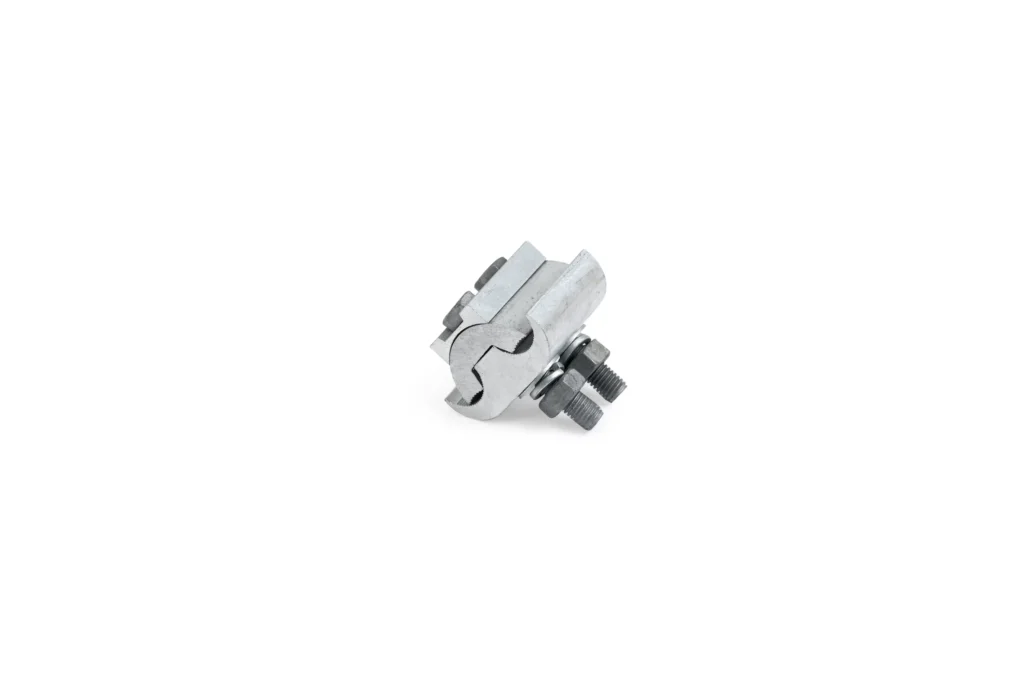

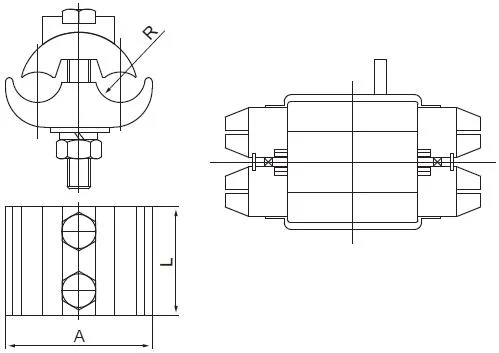

JBL-B

JBL Series Aluminum PG Clamp 6 JBL Series Aluminum PG Clamp 7

Type Conductor Cross-section(mm²） Bolt
JBL-B-2A 16-120 2*M10*55
JBL-B-3A 50-240 2*M10*70
Notice:A type is 2 bolts.
