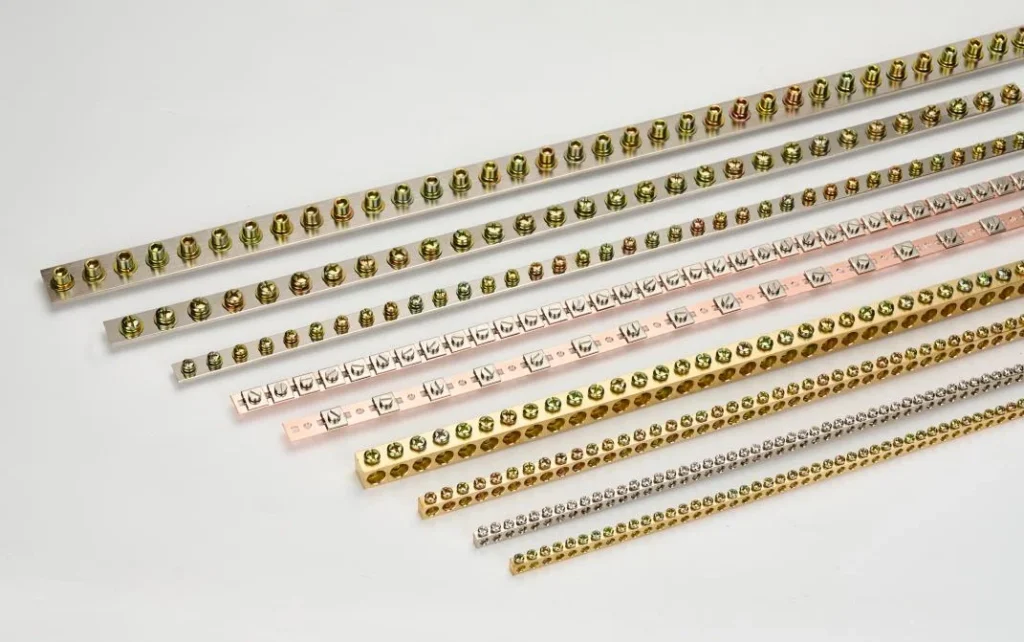

One Meter Series
- Conductor: Brass and Copper
- Screw: Galvanized iron
| Model | Ways | Spec (mm) | L1 (mm) |
W (mm) |
H (mm) |
M Screws |
Ф Diameter(mm) |
| One Meter Series/130-0608 | 130 | 6*8 | 1000 | 6 | 12 | 4*6 | 5.3 |
| One Meter Series/130-0609 | 130 | 6*9 | 1000 | 6 | 13 | 4*7 | 5.3 |
| One Meter Series/130-0710 | 110 | 7*10 | 1000 | 7 | 14 | 5*8 | 6.5 |
| One Meter Series/130-0711 | 110 | 7*11 | 1000 | 7 | 15 | 5*9 | 6.5 |
| One Meter Series/130-0808 | 130 | 8*8 | 1000 | 8 | 12 | 4*6 | 5.3 |
| One Meter Series/130-0810 | 110 | 8*10 | 1000 | 8 | 14 | 5*8 | 6.5 |
| One Meter Series/130-0812 | 100 | 8*12 | 1000 | 8 | 16 | 5*10 | 8 |
| One Meter Series/130-0909 | 130 | 9*9 | 1000 | 9 | 13 | 4*7 | 5.3 |
| One Meter Series/130-0914 | 100 | 9*14 | 1000 | 9 | 18 | 5*12 | 8.5 |
| One Meter Series/130-1010 | 110 | 10*10 | 1000 | 10 | 14 | 5*8 | 6.5 |
| One Meter Series/130-1012 | 100 | 10*12 | 1000 | 10 | 16 | 5*10 | 8 |
| One Meter Series/130-1212 | 100 | 12*12 | 1000 | 12 | 16 | 5*10 | 8 |
| One Meter Series/130-1414 | 90 | 14*14 | 1000 | 14 | 18 | 5*12 | 9 |
| One Meter Series/130-1515 | 90 | 15*15 | 1000 | 15 | 19 | 5*12 | 9 |
| One Meter Series/130-1616 | 72 | 16*16 | 1000 | 16 | 21 | 6*14 | 11 |
| One Meter Series/60-0315 | 60 | 3*15 | 1000 | 15 | 13 | 5*10 | M5 |
| One Meter Series/50-0320 | 50 | 3*20 | 1000 | 20 | 20 | 8*12 | M8 |
| One Meter Series/50-0325 | 50 | 3*25 | 1000 | 25 | 20 | 8*12 | M8 |
| One Meter Series/50-0330 | 50 | 3*30 | 1000 | 30 | 20 | 8*12 | M8 |
| One Meter Series/31 | 31 | 1.5*15 | 1000 | 15 | 13 | 5*10 | M5 |
| One Meter Series/62 | 62 | 1.5*15 | 1000 | 15 | 13 | 5*10 | M5 |
