Pre-insulated sleeve MJPT series Terminals & lugs

MJPT pre-insulated sleeve for LV-ABC phase conductors, 99.5% aluminum, UV-resistant insulation, waterproof silicone grease, clear crimp markings, 6kV tested, EN 50483-4 and NF C33-021 compliant.

Request a Quote

Application

MJPT pre-insulated connectors are designed for LV-ABC systems with neutral messenger.MJPT is used on phase conductor.

 Material:Al≥99.5%

 Feature

  1. Insulation sheath is made of weather and UV resistant material.
  2. Clear marking on insulation sheath to indicate crimping die,crimping sequence and times,cross-section of conductor and stripping length.
  3. Elastomeric caps and pre-filled silicone grease ensure superior waterproof.
  4. Stripping of cable insulation is required before insertion.
  5. Tested by dielectrical voltage of 6kV for 1minute under water.

Standard:EN 50483-4,NF C33-021

 Datas

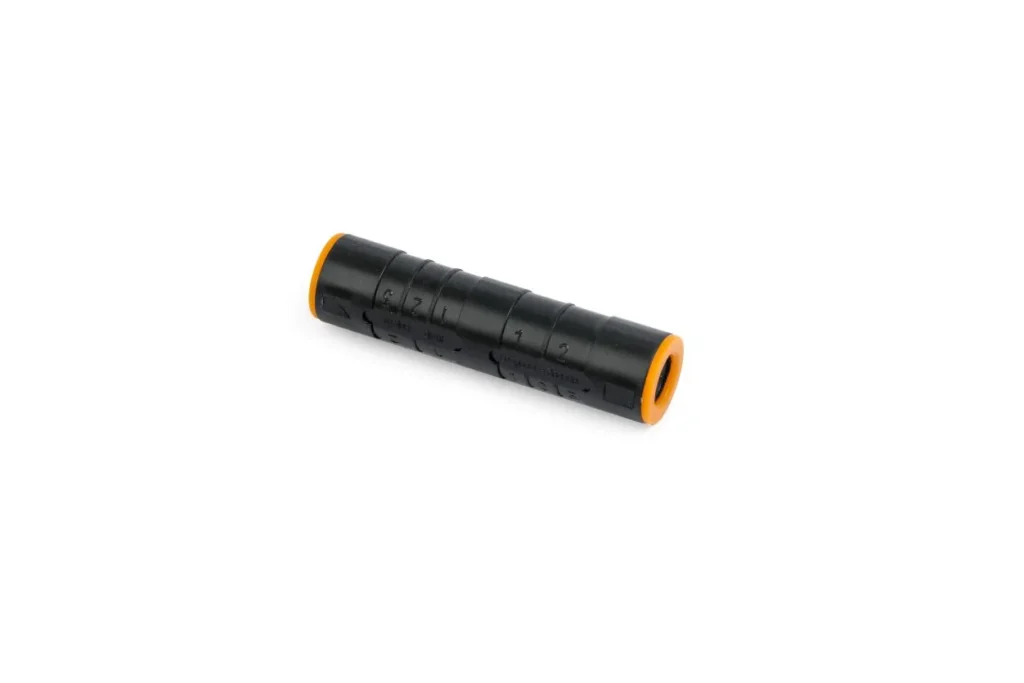

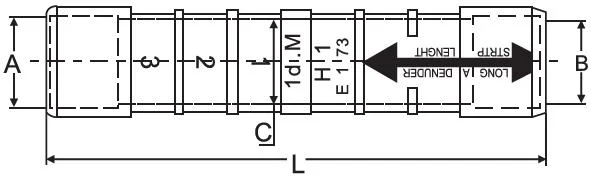

Pre insulated sleeve MJPT series Terminals & lugs (3) Pre insulated sleeve MJPT series Terminals & lugs (4)

Type Cross section(mm²） Cable size(mm²） Plastic sleeve Diameter(mm)
A B C
MJPT 16 16 16 16 20
MJPT 25 25 25 25 20
MJPT 35 35 35 35 20
MJPT 50 50 50 50 20
MJPT 50-25 50-25 50 25 20
MJPT 50-35 50-35 50 35 20
MJPT 54 54 54 70 20
MJPT 70 70 70 35 20
MJPT 70-35 70-35 70 50 20
MJPT 70-50 70-50 70 95 20
MJPT 95 95 95 95 20
MJPT 95-35 95-35 95 35 20
MJPT 95-50 95-50 95 50 20
MJPT 95-70 95-70 95 70 20
MJPT 120 120 120 120 20
