Suspension Clamp

PS series Suspension Clamp

PS suspension clamp for four-core LV aerial cables, galvanized steel strap with UV-resistant rubber insert, shear head bolts for safe torque, secure installation on poles or walls, EN 50483-2 compliant.

Request a Quote

Application

PS series suspension clamps are designed for the installation and suspension of four-core self-supporting low voltage aerial cables lines on poles or walls.

Features

  1. Clamp is made of steel strap with hot-dip galvanized on surface.
  2. Rubber part is made of weather resistant and anti-UV material.
  3. Equipped with shear head bolts.Constant installation torque is convenient for installation without any any damage to cable insulation layer.
  4. No loose parts could fall off during installation.

Standard:EN 50483-2

Datas

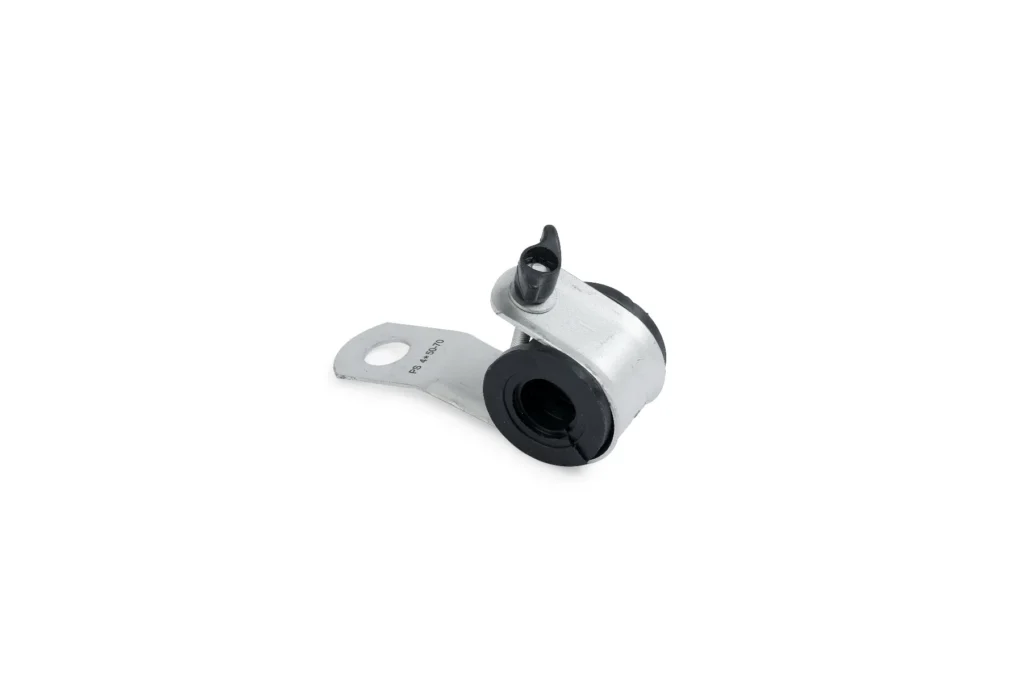

PS series Suspension Clamp (2)

TYPE Cross section (mm²） Breaking load(kN)
PS4*25 25 8
PS4*35 35 8
PS4*50 50 8
PS4*70 70 10
PS4*95 95 10
PS4*120 120 10
