Application

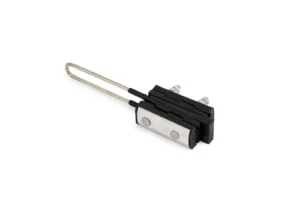

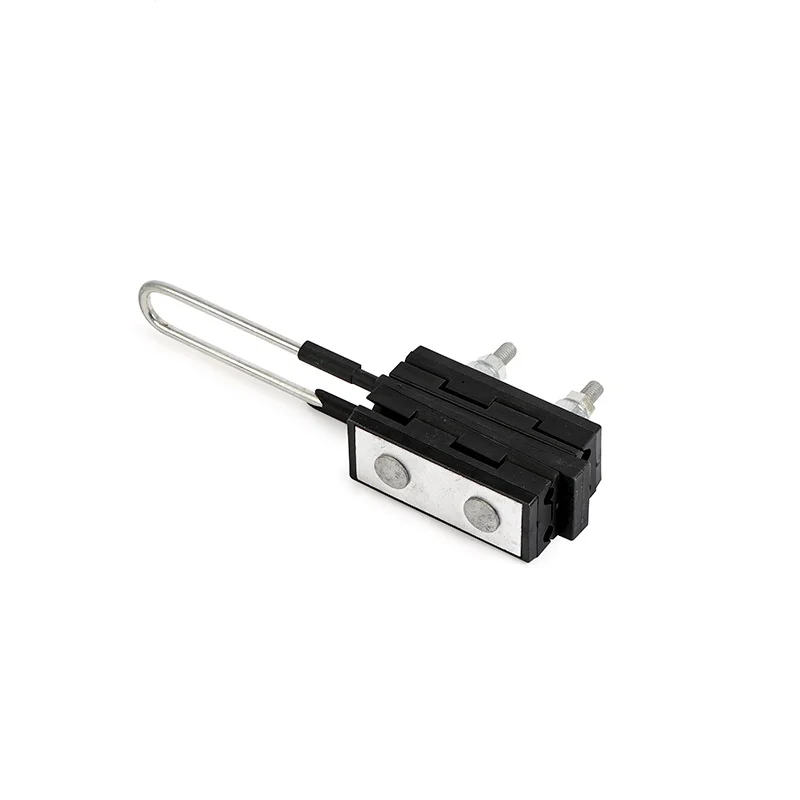

RPA dead end clamps are applicable to anchor fastenings for self-support insulated conductor with four bearing wires of same section.And used for the single anchoring of A.B.C.(Aerial Bundled Conductors) with insulated neutral messenger.
Features
- Reinforced polyamide fiberglass body
- Two clamping steel plates with steel bolts
- The spring,provide automatic opening of clamp for installation and fastening of wires.
Datas
| Type | Cross section(mm²） | Messenger DIA.(mm) | Breaking load |
| RPA 425/50 | 4*(25-50) | 10-12 | 15kN |
| RPA 450/120 | 4*(50-120) | 11-17 | 20kN |
