Terminal With Cover

A01 Netural Bar with Full Plastic Cover and Screw Terminal

High-performance terminal block with brass conductor, UL94V-2 PA66 housing, 250–450V rating, -30°C to 110°C, easy 35mm DIN rail or screw mounting.

Request a Quote

A01 Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. PA (Nylon 66), flame retardant with UL94V-2 rating, high strength, excellent high-temperature and electrical performance, crack-resistant
  4. Operating temperature: -30°C to 110°C
  5. Applicable voltage range: 250–450V
  6. Installation method: 35mm DIN rail with screw fixation
  7. Plastic color: Standard colors are blue and green; other colors available on request

A01 series

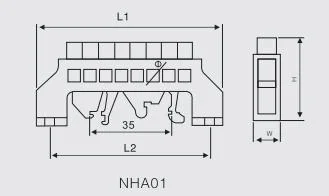

Model Ways Spec    (mm) L1
(mm)		 W
(mm)		 H
(mm)		 L2 Installation
Dimension (mm)		 M
Screws		 Ф
Diameter(mm)
A01/4-0609 4 6*9 63 10 33 35/52 4*8 5.3
A01/6-0609 6 6*9 63 10 33 35/52 4*8 5.3
A01/8-0609 8 6*9 76 10 33 35/65 4*8 5.3
A01/10-0609 10 6*9 89 10 33 35/78 4*8 5.3
A01/12-0609 12 6*9 102 10 33 35/91 4*8 5.3
A01/14-0609 14 6*9 115 10 33 35/104 4*8 5.3
A01/16-0609 16 6*9 128 10 33 35/117 4*8 5.3
A01/6-0711 6 7*11 75 12 36 35/64 5*9 6.5
A01/8-0711 8 7*11 92 12 36 35/81 5*9 6.5
A01/10-0711 10 7*11 109 12 36 35/98 5*9 6.5
A01/12-0711 12 7*11 126 12 36 35/115 5*9 6.5
A01/14-0711 14 7*11 143 12 36 35/132 5*9 6.5
A01/16-0711 16 7*11 160 12 36 35/149 5*9 6.5
A01/6-0711 6 7*11 75 12 36 35/64 5*10 6.5
A01/8-0812 8 8*12 92 12 36 35/81 5*10 6.5
A01/10-0812 10 8*12 108 12 36 35/98 5*10 6.5
A01/12-0812 12 8*12 125 12 36 35/115 5*10 6.5
A01/14-0812 14 8*12 143 12 36 35/132 5*10 6.5
A01/16-0812 16 8*12 160 12 36 35/149 5*10 6.5

A01
