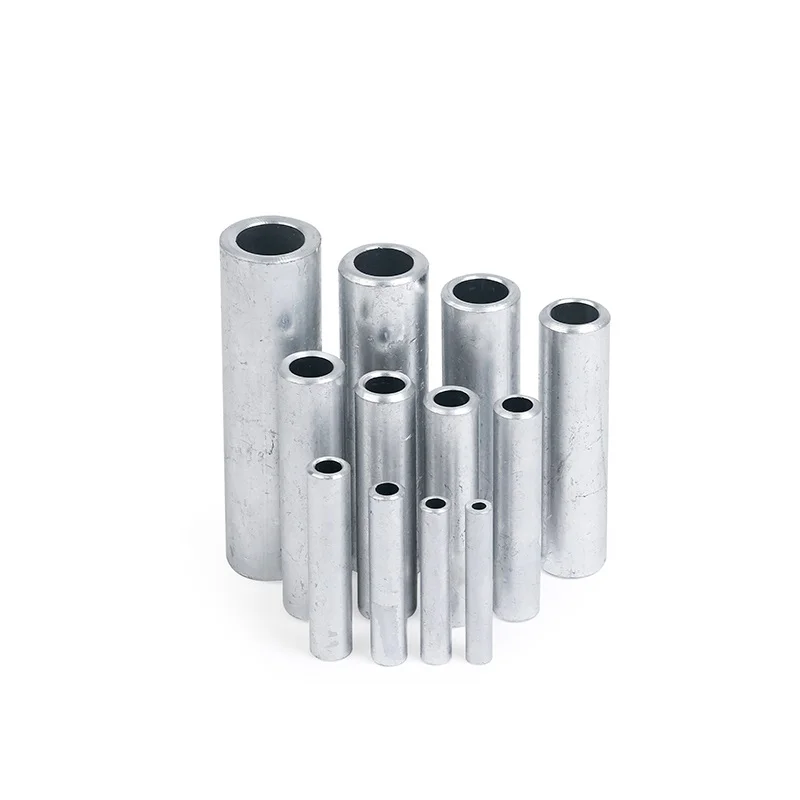

Aluminum Connecting Tube GL series Terminals & lugs

GL aluminum connecting tube for circular and sector conductors, 99.5% aluminum body with prefilled joint compound prevents oxidation, ensures secure and low-resistance splicing in power and distribution systems.

Request a Quote

Application

GL series suitable for connecting the circular wire and hemicycle wire in distribution equipment or power supply cables.

 Material:AL≥99.5%

 Datas

GL-1

The barrels capped are filled with joint compound to avoid oxidization.

Aluminum Connecting Tube GL series Terminals & lugs (3) Aluminum Connecting Tube GL series Terminals & lugs (4)

Type D±0.5 d±0.3 L±2
GL-1-10 8 5 53
GL-1-16 10 5.5 67
GL-1-25 12 7.5 67
GL-1-35 14 8.5 74
GL-1-50 16 10 80
GL-1-70 18 11.5 90
GL-1-95 21 13 95
GL-1-120 23 15 99
GL-1-150 25 16.5 105
GL-1-185 27 18 110
GL-1-240 30 21 119
GL-1-300 34 22.5 131
GL-1-400 38 25.5 141

GL-2

Oil and water stop

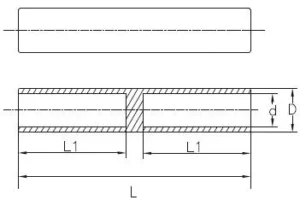

Aluminum Connecting Tube GL series Terminals & lugs (5)Aluminum Connecting Tube GL series Terminals & lugs (6)

Type D±0.2 d±0.2 L±2 L1±2
GL-2-16 11 6.1 70 30
GL-2-25 12 7.1 75 32
GL-2-35 14 8.5 85 37
GL-2-50 16 9.8 95 43
GL-2-70 18 11.5 105 47
GL-2-95 21 13.5 110 50
GL-2-120 23 15 115 53
GL-2-150 25 16.5 120 55
GL-2-185 27 18.5 125 57
GL-2-240 30 21 130 60
GL-2-300 34 23.5 140 65
GL-2-400 38 26 160 70
