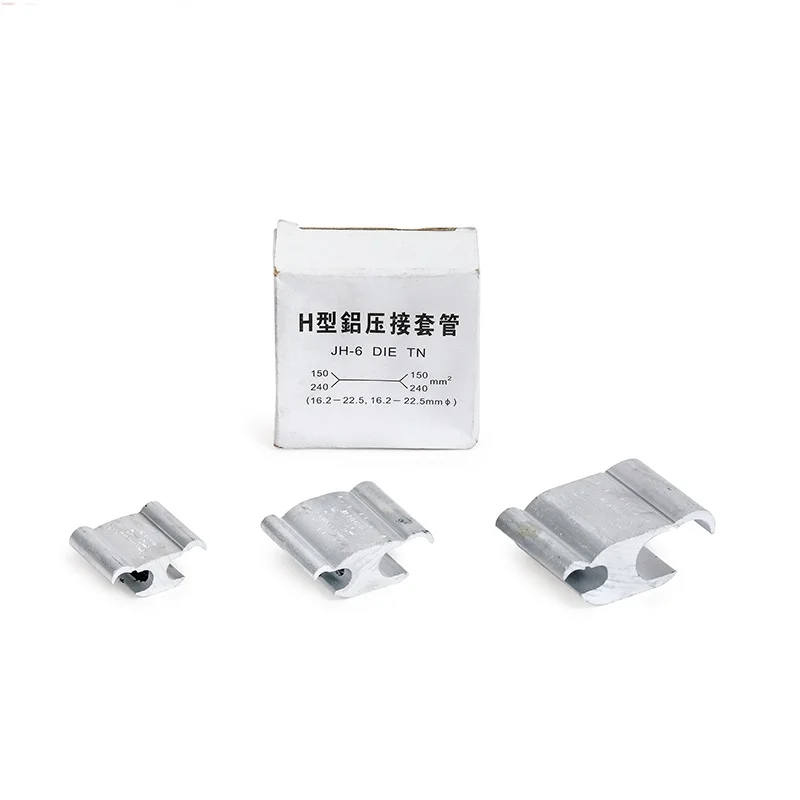

Aluminum tap clamp H type Special clamp

H type aluminum tap clamp for branching identical conductor cross-sections, no need to cut main line, independent tap grooves allow flexible use, easy slip-on installation for overhead power connections.

Application

H type clamp is suitable for branching identical cross-sections and no need to split the main conductor.It was use for wide range conductor,Connector can be gripped in tool and slipped over line for easier installation.

Structure Feature

Tap grooves function independently of each other.Use of one tap is required.Balance may be used of left empty.

Datas

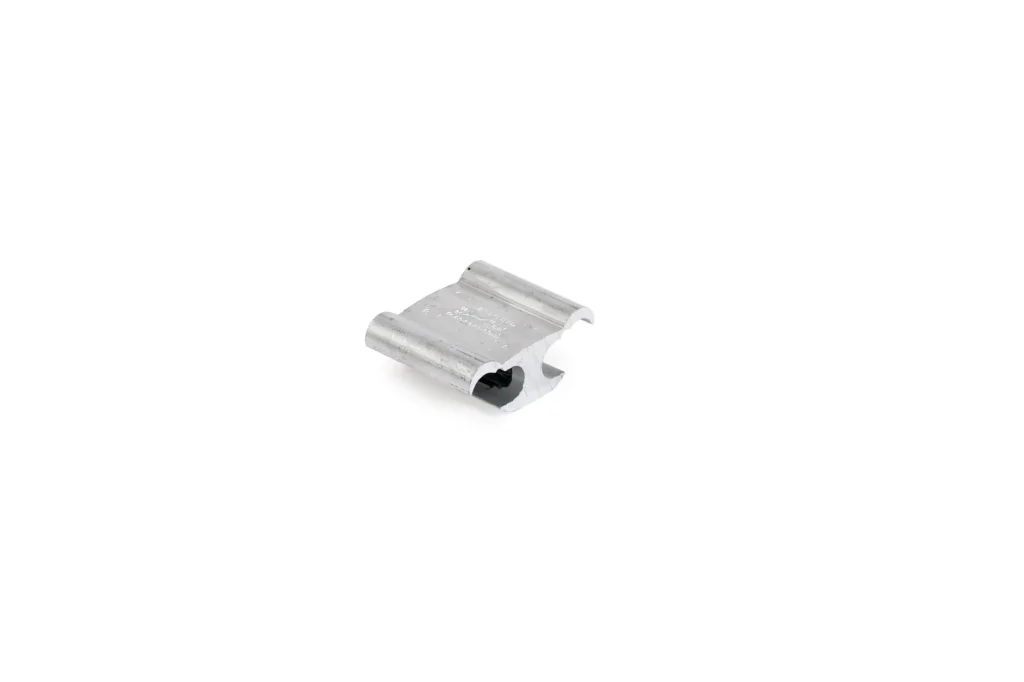

Aluminum tap clamp H type Special clamp (3)

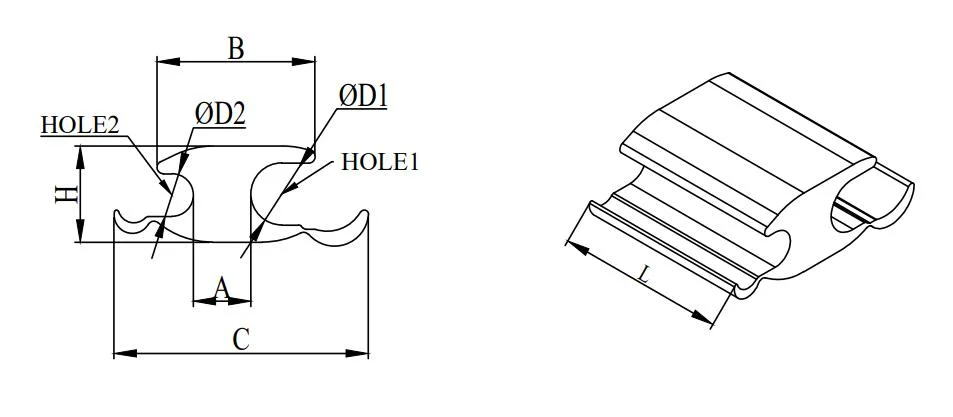

Type	Hole 1(mm²）	D1(mm）	Hole 2(mm²）	D2(mm）	A(mm)	B(mm)	C(mm)	H(mm)	L(mm)
AS-H1	16-35	4.8-8.2	16-35	4.8-8.2	7.1	24.3	41	15	38.3
AS-H2	50-95	8.3-14.0	16-50	4.8-9.6	13	36.6	60	22.5	48.3
AS-H3	50-95	10.0-14.0	50-95	10.0-14.0	5.4	36.4	63	22.3	60.5
AS-H4	95-240	13.0-22.4	16-70	4.8-11.4	14.3	50.5	80.4	30	60.5
AS-H5	95-240	13.0-22.4	70-150	11.6-16.0	9.4	50	83.5	32	60
AS-H6	15-240	16.2-22.4	150-240	16.2-22.4	5.1	50.5	90.6	30.3	90
