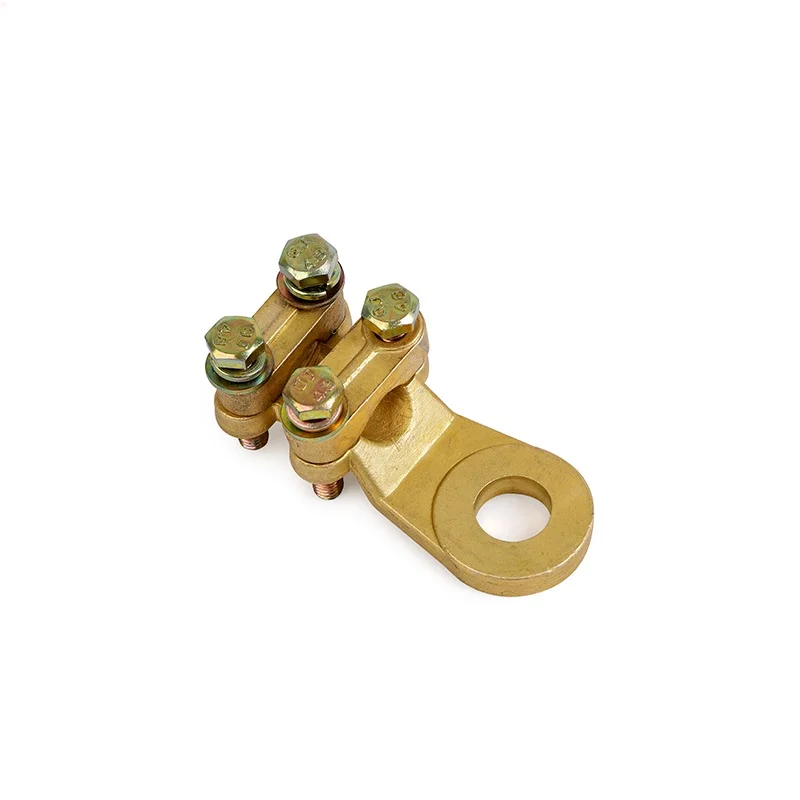

WCJC brass jointing clamps Special clamp
WCJC brass jointing clamp for indoor distribution equipment, nickel-plated surface for corrosion resistance, suitable for 16–500mm² cables, provides secure and reliable transition connections between wires and appliances.
Application
WCJC suitable for transition connection of the electric appliance owith wire and cable in indoor distribution equipment.
Structure Feature
1.The surface is nickel plated.
2.WCJC Brass Jointing Clamp range is from 16 sqmm to 500 sqmm.
Datas

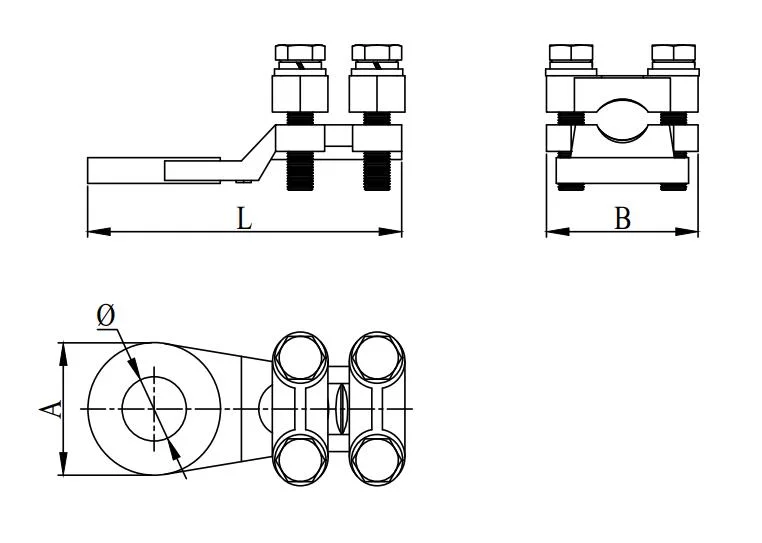

| Type | Conductor(mm²） | Dimensions(mm) | |||
| L | A | R | Φ | ||
| WCJC-1 | 16 | 37 | 21 | 3 | 7.5 |
| WCJC-2 | 25-35 | 48 | 22 | 4 | 11 |
| WCJC-3 | 50-70 | 60 | 31 | 5.5 | 11 |
| WCJC-4 | 120-150 | 70 | 35 | 8.5 | 15 |
| WCJC-5 | 210-250 | 90 | 46 | 10.5 | 17 |
| WCJC-6 | 300 | 115 | 56 | 12 | 21 |
| WCJC-7 | 400-500 | 125 | 62 | 15 | 23 |
