Bimetal lugs DLT series Terminals & lugs

DLT bimetal lug for aluminum to copper cable terminations, friction welded aluminum and copper body with prefilled joint compound ensures secure, low-resistance and corrosion-resistant electrical connections in power systems.

Request a Quote

Application

Suitable for the connection of the wires in contribution equipment and power supply cables with electronic apparatus.

 Material:Al≥99.5%,CU≥99.9%

 Feature

  1. Suitable for aluminum to copper terminations.
  2. Prefilled with jointing compound.
  3. Friction welded

 Datas

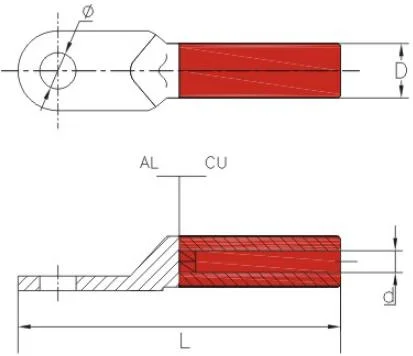

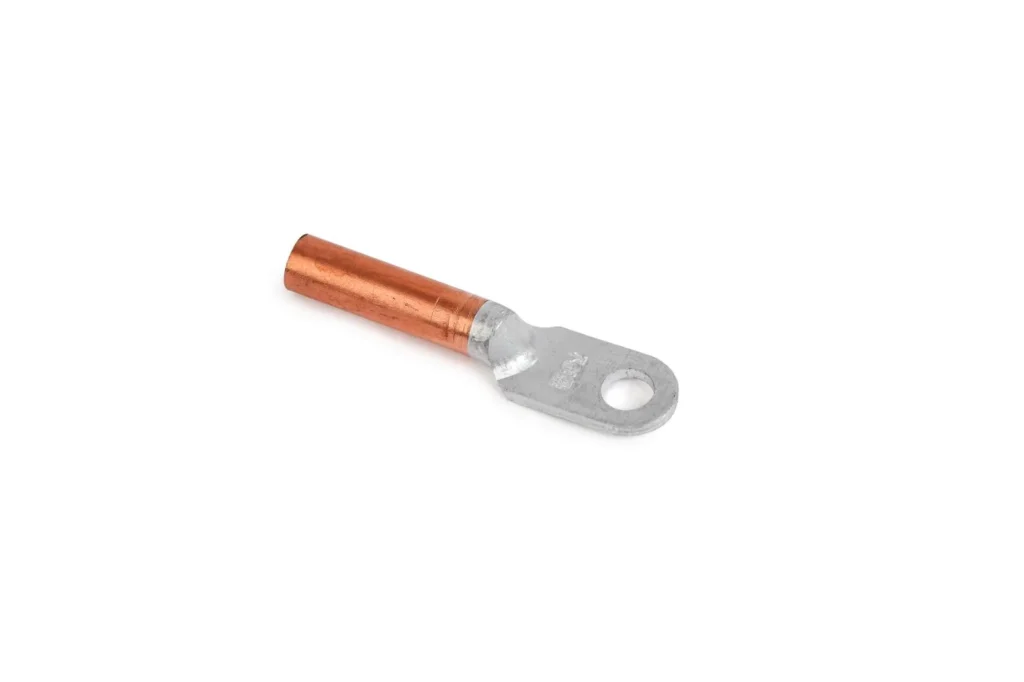

Bimetal lugs DLT series Terminals & lugs (2) Bimetal lugs DLT series Terminals & lugs (3)

Type φ±0.3 D±0.2 d±0.2 L±2
DLT-10 8.5 9 5.2 66
DLT-16 8.5 10 6.1 70
DLT-25 8.5 11 7.1 76
DLT-35 10.5 12 8.5 83
DLT-50 10.5 14 9.8 90
DLT-70 12.5 16 11.5 102
DLT-95 12.5 18 13.5 112
DLT-120 14.5 20 15 120
DLT-150 14.5 22 17 126
DLT-185 16.5 25 18.6 134
DLT-240 16.5 27 21.5 140
DLT-300 21 31 24 160
DLT-400 21 34 27 178
DLT-500 21 38 30 200
