Terminal With Cover

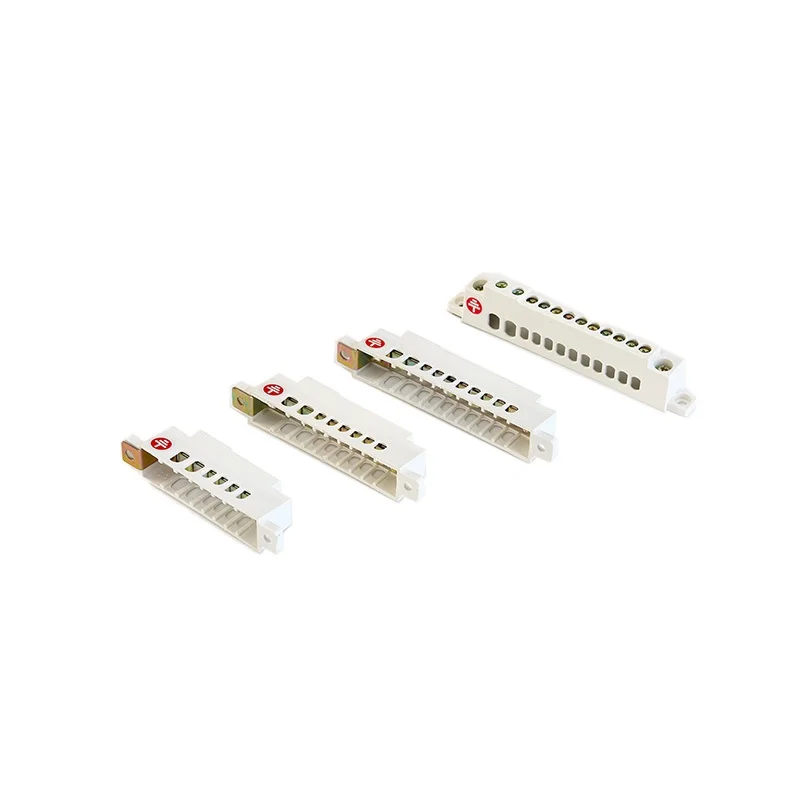

A27 Earth Screw Terminal Grounding Bar With Cover

A27 Earth Series terminal block with brass conductor, galvanized screws, and UL94V-2 PA66 housing. Rated 250–450V, -30°C to 110°C, flame retardant, high strength, excellent electrical performance, screw-mounted, standard gray or custom colors.

Request a Quote

A27E Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. PA (Nylon 66), flame retardant with UL94V-2 rating, high strength, excellent high-temperature and electrical performance, crack-resistant
  4. Operating temperature: -30°C to 110°C
  5. Applicable voltage range: 250–450V
  6. Installation method: Screw fixation
  7. Plastic color: Standard color is gray; other colors available on request

NHA27 E Screw Terminal Grounding Bar With Cover (2)

Model Ways Spec  (mm) L1
(mm)		 W
(mm)		 H
(mm)		 L2 Installation
Dimension (mm)		 M
Screws		 Ф
Diameter(mm)
A27/6E 6 1.0 105 22 30 93 6./8.
A27/8E 8 1.0 120 22 30 107 6./8.
A27/10E 10 1.0 137 22 30 123 6./8.
A27/12E 12 1.0 150 22 30 138 6./8.
