Cable Lugs

Bimetal lugs DTL-2 series Terminals & lugs

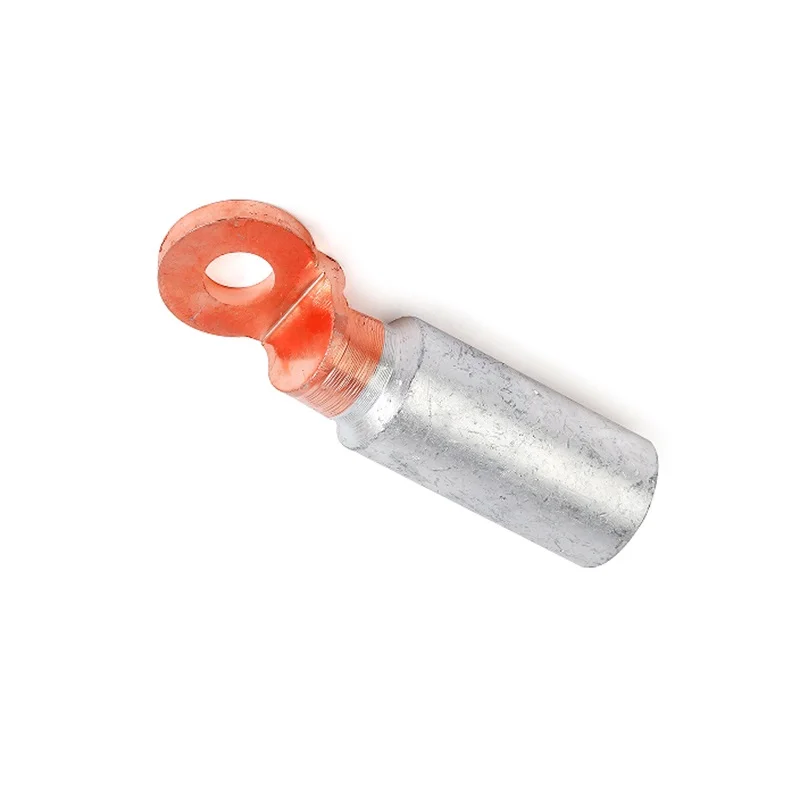

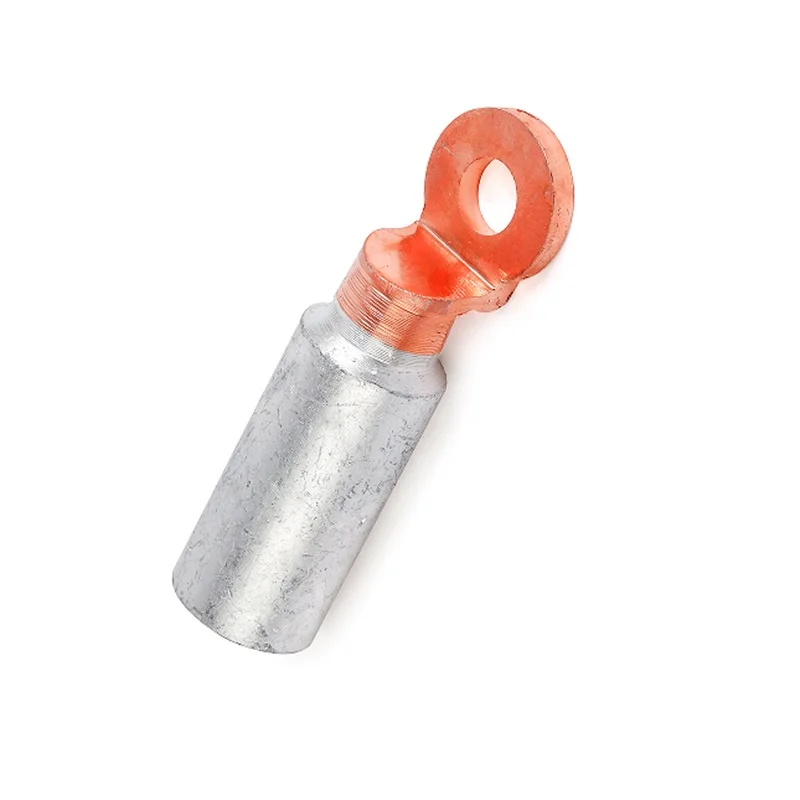

DTL-2 bimetal lug for low voltage aluminum to copper connections, friction welded aluminum and copper body with oil-blocking structure and prefilled joint compound ensures secure, corrosion-resistant electrical terminations.

Request a Quote

Application

Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in low voltage.

 Material:Al≥99.5%,CU≥99.9%

 Feature

  1. Oil blocking structure
  2. Friction welded
  3. Prefilled with jointing compound.

 Datas

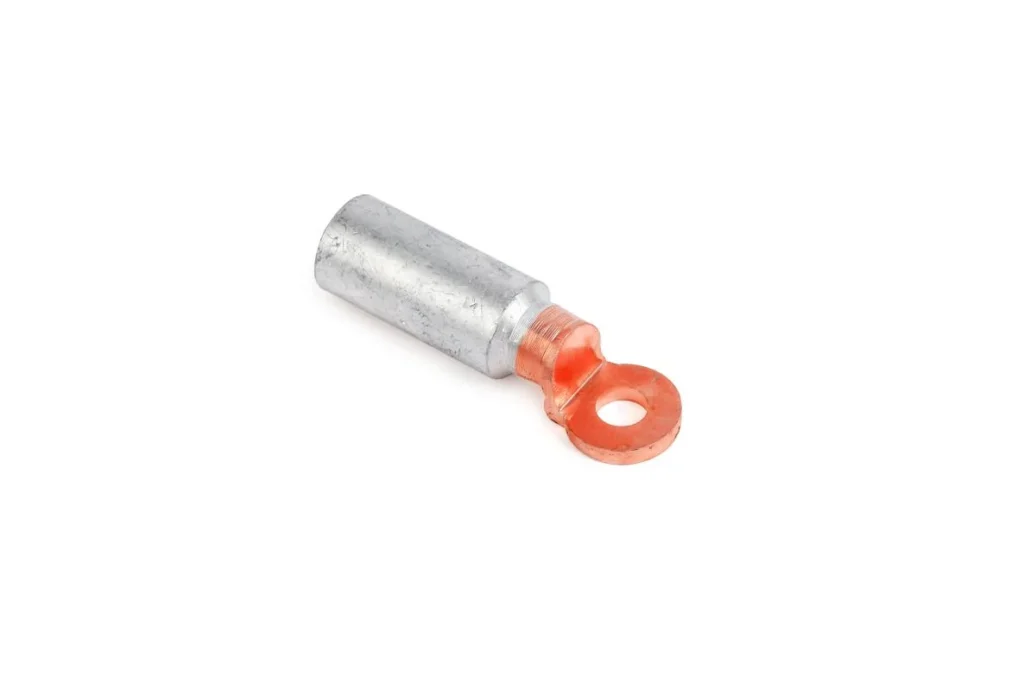

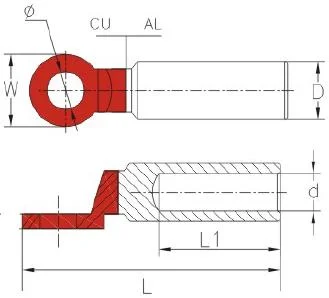

Bimetal lugs DTL 2 series Terminals & lugs (4) Bimetal lugs DTL 2 series Terminals & lugs (5)

Type φ±0.3 D±0.2 d±0.2 L±2 L1±2 W±0.2
DTL-2-10 10.5 16 5.5 80 42 20
DTL-2-16 10.5 16 6.5 80 42 20
DTL-2-25 10.5 16 7.5 80 42 20
DTL-2-35 10.5 16 8.5 80 42 20
DTL-2-50 13 20 9.8 90 43 25
DTL-2-70 13 20 11 90 43 25
DTL-2-95 13 20 13.5 90 43 25
DTL-2-120 13 25 15 113 60 30
DTL-2-150 13 25 16.5 113 60 30
DTL-2-185 13 32 18.5 120 60 35
DTL-2-240 13 32 20.5 120 60 35
DTL-2-300 13 33.5 23.5 128 72 35
DTL-2-400 17 40 26.5 148 93 36
DTL-2-500 17 40 29.5 160 93 36
DTL-2-630 17 47 32.5 180 94 45
