Bimetal lugs DTL-2S series Terminals & lugs

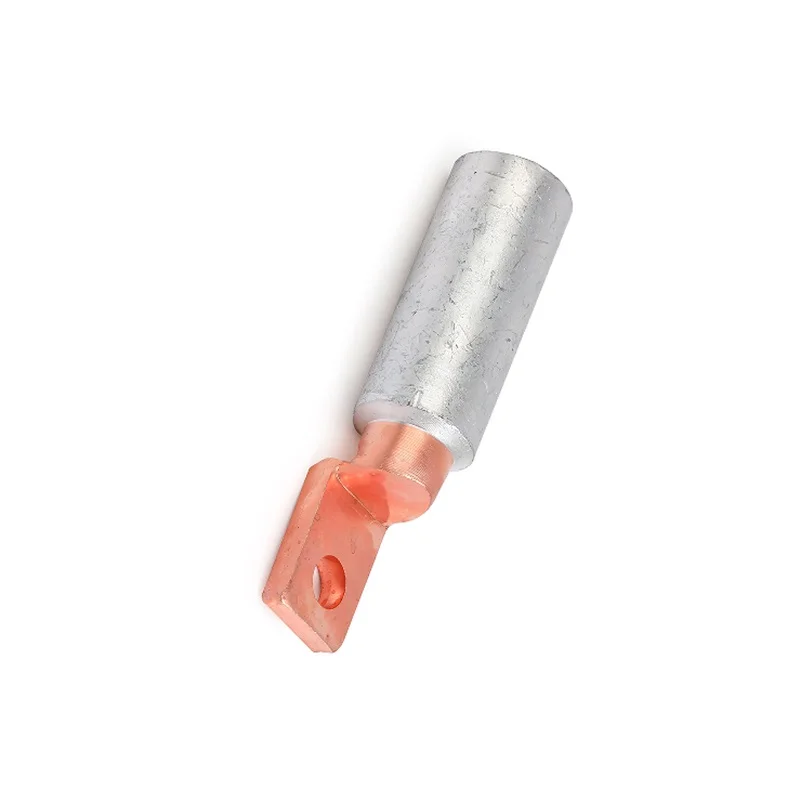

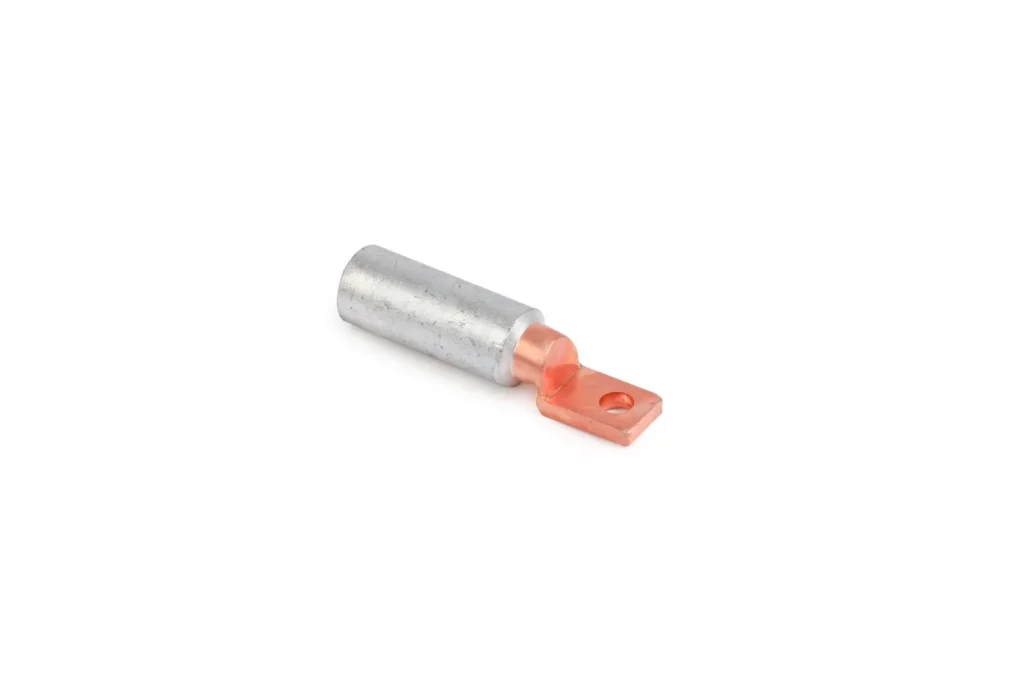

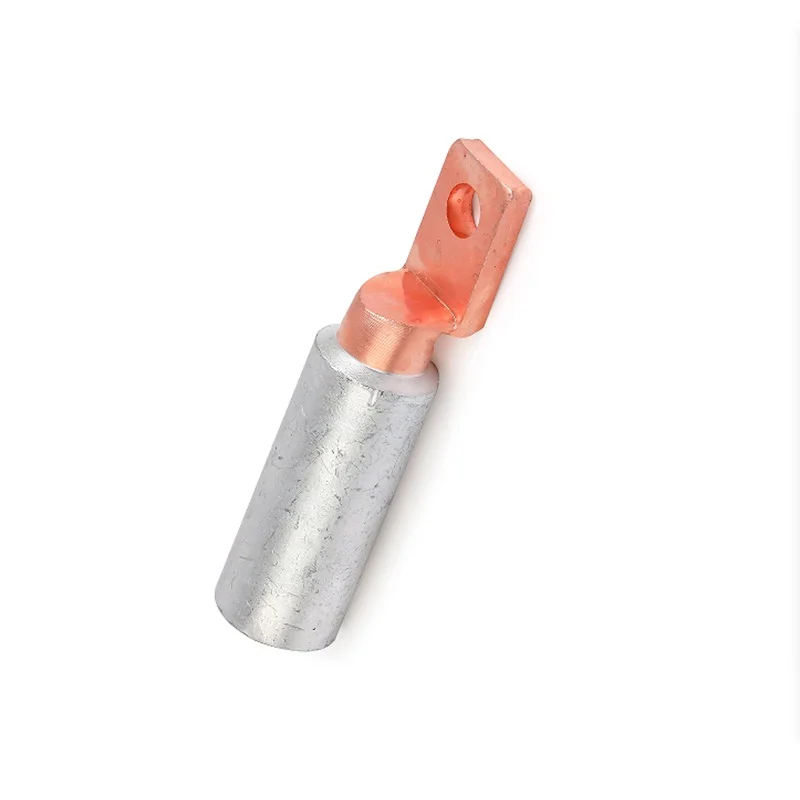

DTL-2S bimetal lug for low voltage aluminum to copper connections, solid palm prevents moisture ingress, friction welded aluminum and copper with prefilled joint compound ensures reliable, corrosion-resistant terminations.

Application

Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in low voltage.

Material:Al≥99.5%,CU≥99.9%

Feature

The solid palm eliminates the ingress of moisture
Friction welded
Prefilled with jointing compound.

Datas

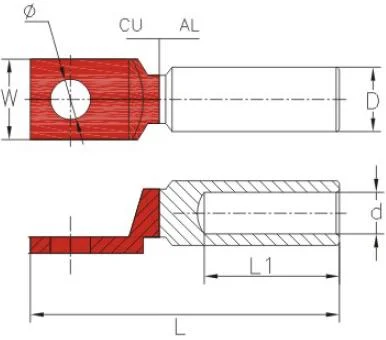

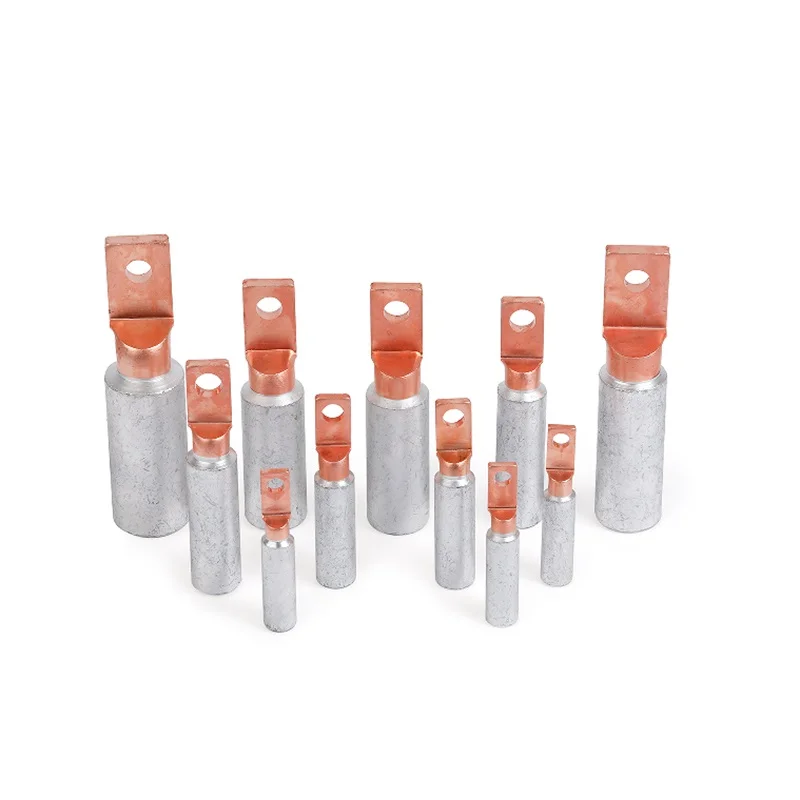

Type	φ±0.3	D±0.2	d±0.2	L±2	L1±2	W±0.2
DTL-2S-10	8.5	16	4.8	88	42	14
DTL-2S-16	8.5	16	5.5	88	42	14
DTL-2S-25	8.5	16	7	88	42	14
DTL-2S-35	8.5	16	8.6	88	42	14
DTL-2S-50	10.5	20	9.5	103	50	17.4
DTL-2S-70	10.5	20	12	103	50	17.4
DTL-2S-95	10.5	20	12.8	103	50	17.4
DTL-2S-120	13	25	14.8	122	60	21.5
DTL-2S-150	13	25	15.8	122	60	21.5
DTL-2S-185	13	32	18.1	131	60	26
DTL-2S-240	13	32	20.1	131	60	26
DTL-2S-300	13	34	22.8	148	64	31.8
