Bimetal lugs DTL-3 series Terminals & lugs

DTL-3 bimetal lug for low voltage aluminum to copper connections, friction welded aluminum and copper body with oil-blocking structure and prefilled joint compound ensures secure, corrosion-resistant electrical terminations.

Request a Quote

Application

Suitable for screwing non-tension aluminum connections.

 Material:Al≥99.5%,CU≥99.9%

 Feature

  1. Using CU-washers in humid areas and for pre-rounded sector shaped conducotrs
  2. With CU eye in screw-on and markings for correct crimping.
  3. Aluminum barrel is filled by neutral greases and covered by cap.

 Datas

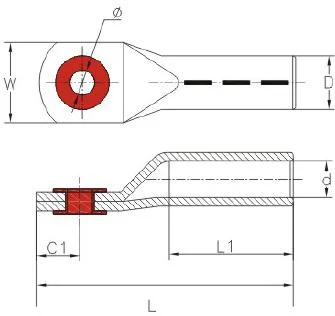

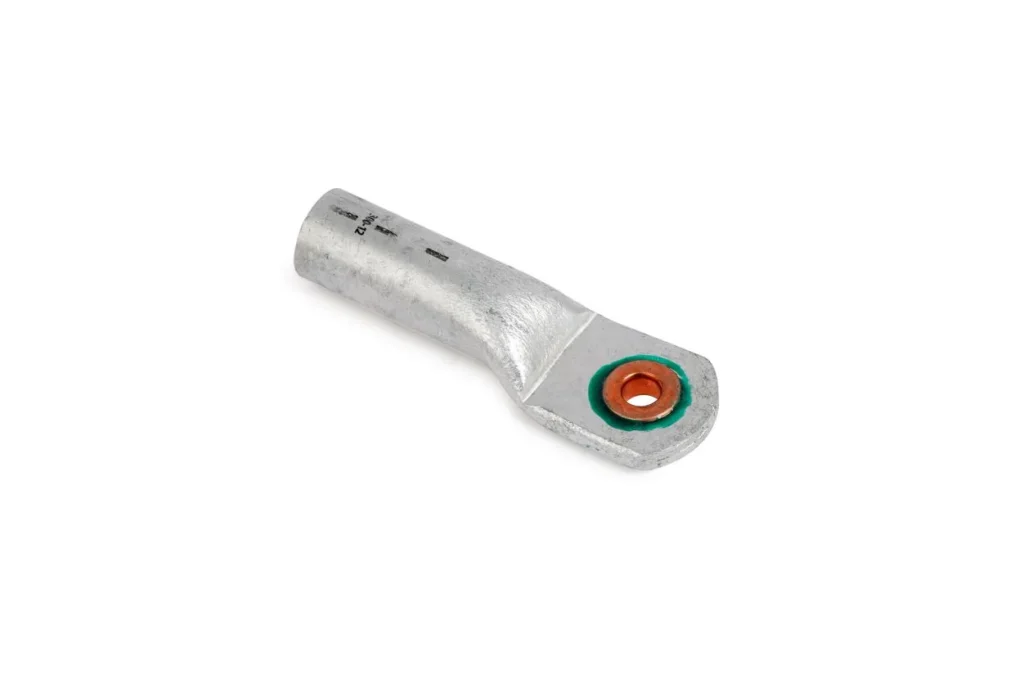

Bimetal lugs DTL 3 series Terminals & lugs (2) Bimetal lugs DTL 3 series Terminals & lugs (3)

Type D±0.2 d±0.2 φ±0.3 C1±1 L±2 W±0.2
DTL-3-35 14 8.5 10.5 14.9 82 25
DTL-3-50 16 10 10.5 14.5 87 27
DTL-3-70 18 11.5 13 17.2 102 32
DTL-3-95 21 13.5 13 19.6 106 35
DTL-3-120 23 15 13 16.5 112 35
DTL-3-150 25 16.5 13 18.9 125 35
DTL-3-185 28 18.5 13 22 133 42
DTL-3-240 32 21 17 26.2 140 46
DTL-3-300 34 23.5 17 26 155 50
DTL-3-400 38 26.5 17 30 170 58
