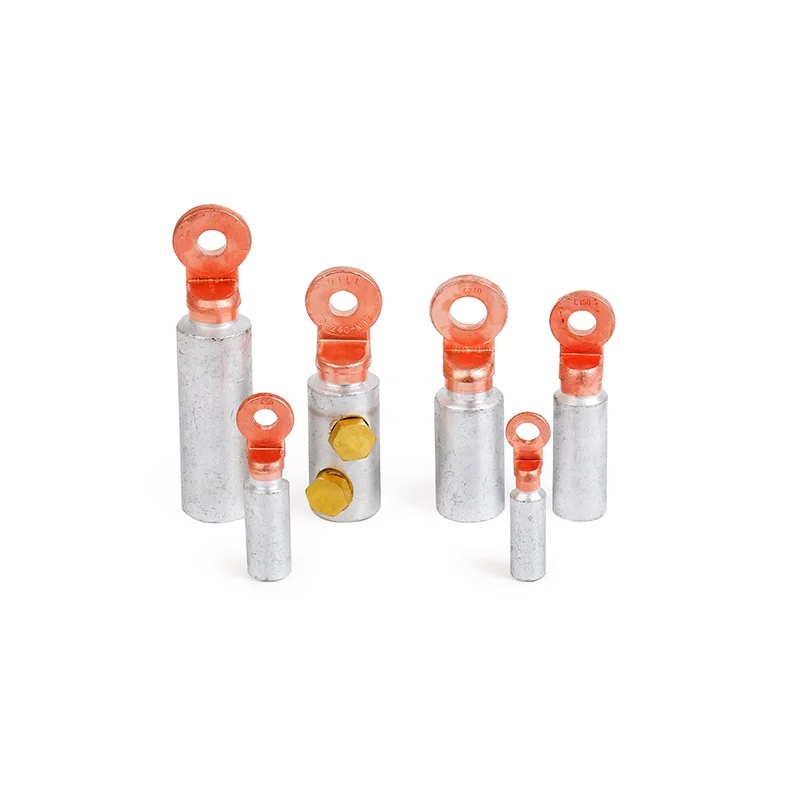

Bimetal lugs DTL-5 series Terminals & lugs

DTL-5 bimetal lug for low voltage aluminum to copper connections, friction welded aluminum and copper body with oil-blocking structure and prefilled joint compound ensures secure, corrosion-resistant electrical terminations.

Request a Quote

Application

Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in medium voltage.Suitable for connecting ABC cables to transformers,switchgear etc.

 Material:Al≥99.5%,CU≥99.9%

 Feature

Oil blocking structure

Friction welded

Prefilled with jointing compound.

 Datas

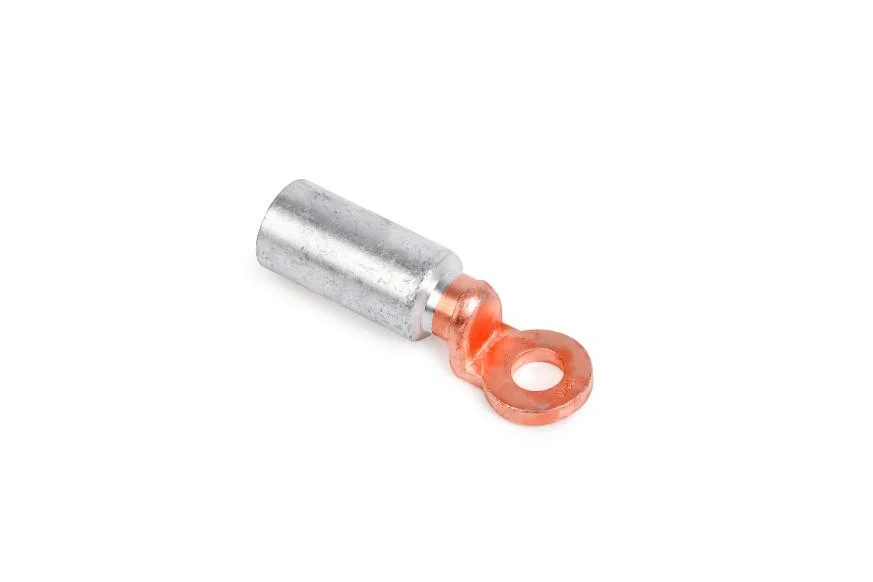

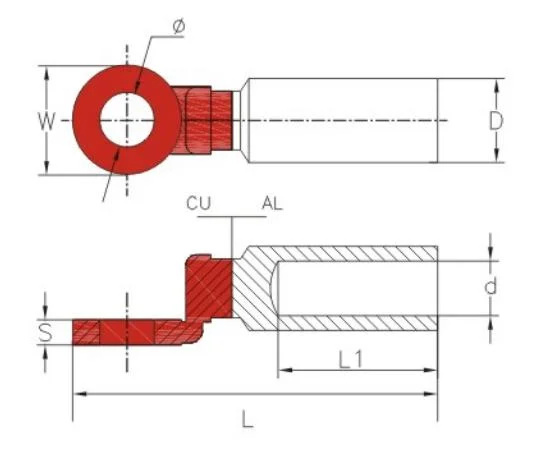

Bimetal lugs DTL 5 series Terminals & lugs (3) Bimetal lugs DTL 5 series Terminals & lugs (4)

Type φ±0.3 D±0.2 d±0.2 L±2 L1±2 W±0.2
DTL-2B-16 10.5 16 5.5 80 40 20
DTL-2B-25 10.5 16 7 80 40 20
DTL-2B-35 10.5 16 8.2 80 40 20
DTL-2B-50 13 20 9.2 90 43 25
DTL-2B-70 13 20 11.2 90 43 25
DTL-2B-95 13 20 12.5 90 43 25
DTL-2B-120 13 25 14 112 58 30
DTL-2B-150 13 25 16.5 112 58 30
DTL-2B-185 13 32 18.5 122 60 35
DTL-2B-240 13 32 20.5 122 60 35
DTL-2B-300 13 34 23.5 125 65 35
DTL-2B-400 17 40 26.5 160 90 36
DTL-2B-500 17 40 29.5 160 90 36
