Bimetal lugs OTD series Terminals & lugs

OTD bimetal lug for power distribution and electrical equipment connections, friction welded aluminum and copper body with oil-blocking structure and prefilled joint compound ensures secure, corrosion-resistant terminations.

Request a Quote

Application

Suitable for the connection of the wires in contribution equipment and power supply cables with electronic apparatus.

 Material:Al≥99.5%,CU≥99.9%

 Feature

  1. Oil blocking structure
  2. Friction welded
  3. Prefilled with jointing compound

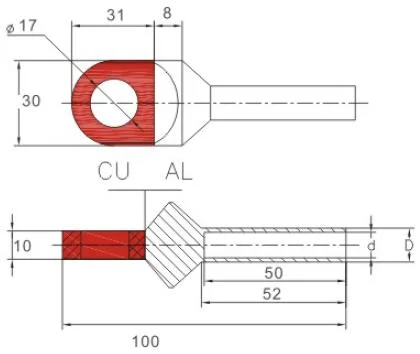

Bimetal lugs OTD series Terminals & lugs (5)

 Datas

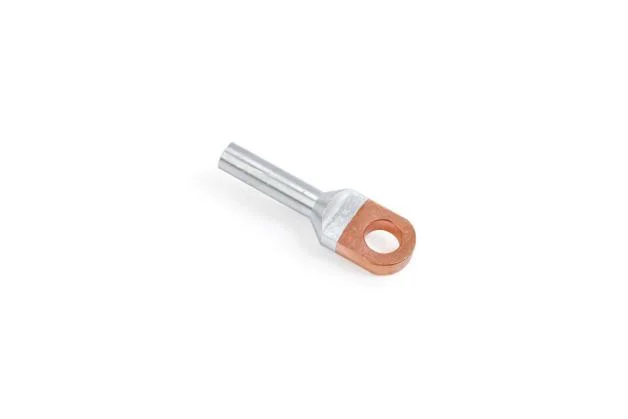

Bimetal lugs OTD series Terminals & lugs (6) Bimetal lugs OTD series Terminals & lugs (7)

Type D±0.5 d±0.3
OTD-35 14 8
OTD-50 16 10
OTD-70 18 12
OTD-95 21 13
OTD-120 23 15
OTD-150 25 16
OTD-185 28 18
OTD-240 31 20
OTD-300 35 22
OTD-400 39 25
