Coppper Lugs

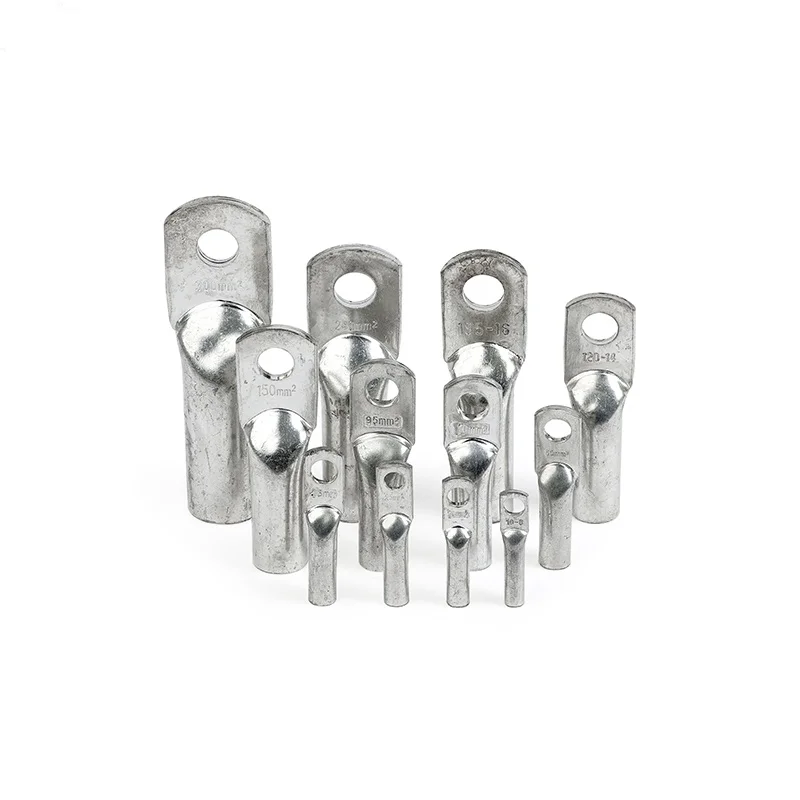

Copper lugs DT(G) series Terminals & lugs

DT(G) copper lug with inspection window for easy conductor positioning, tin-plated for corrosion resistance, clearly marked cable size, ideal for secure connections in power distribution and electronic equipment.

Request a Quote

Application

DT(G) series copper lugs are suitable for the connection of wires in distribution equipment power supply cable with electronic apparatus.It is made of copper tube by die cast and coated tin.

Feature

  1. Have a viewing window to check the location of the conductor.
  2. Cable area is identified clearly on the lug

 Datas

Copper lugs DT(G) series Terminals & lugs (3) Copper lugs DT(G) series Terminals & lugs (4)

Type φ±0.5 D±0.5 d±0.5 L±2 W±0.5 S±0.5
DT(G)-10 8.5 8 5.4 51 12.4 2.2
DT(G)-16 8.5 8.8 6 56 12.4 2.7
DT(G)-25 8.5 10 7.1 61 14.3 2.8
DT(G)-35 10.5 11 8.2 66 15.8 2.8
DT(G)-50 10.5 13 10.1 71 18.9 3
DT(G)-70 12.5 16 12.1 80 23 3.9
DT(G)-95 12.5 18 14 86 26 4
DT(G)-120 14.5 20 15.7 95 28.7 4.4
DT(G)-150 14.5 22 17.4 101 32 4.7
DT(G)-185 16.5 25 19.2 112 36 5.8
DT(G)-240 16.5 27 21 118 38.7 6
DT(G)-300 16.5 30 24.1 134 43.5 6
DT(G)-400 18.5 33 26 153 47.5 7
DT(G)-500 20.5 40 31.7 170 58 8.5
DT(G)-630 20.5 45 36 210 65 9.2
