Coppper Lugs

Copper lugs GT series Terminals & lugs

GT copper lug for circular and sector conductors, 99.9% high-purity copper keeps strands together, prevents damage, and ensures secure, low-resistance connections in power distribution systems.

Application

Suitable for the connecting the circular wire and hemicycle-sector wire in distribution equipment of power supply cables.

Keeps wire strands together and prevents strands from being severely damaged.

 Material:CU≥99.9%

 Datas

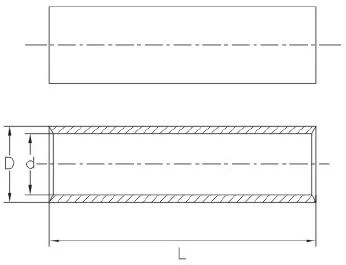

GT-1 Type

Copper lugs GT series Terminals & lugs (3) Copper lugs GT series Terminals & lugs (4)

Type D±0.5 d±0.3 L±2
GT-1-10 8 5.6 50
GT-1-16 9 6.6 56
GT-1-25 10 7.6 60
GT-1-35 11 8.6 64
GT-1-50 13 10.4 72
GT-1-70 15 12 78
GT-1-95 17 14 85
GT-1-120 19 15 90
GT-1-150 21 17 94
GT-1-185 24 19 100
GT-1-240 26 21 110
GT-1-300 28 23 120
GT-1-400 32 26.5 130

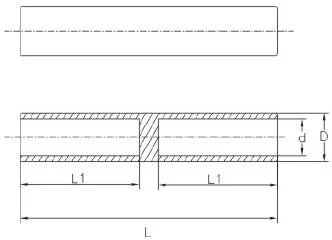

GT2 Type

Oil and waterstop

Copper lugs GT series Terminals & lugs (5) Copper lugs GT series Terminals & lugs (6)

Type D±0.5 d±0.3 L±2 L1±2
GT-2-16 10 6.1 65 30
GT-2-25 11 7.1 70 32
GT-2-35 12 8.5 75 34
GT-2-50 14 9.8 80 36
GT-2-70 16 11.5 90 42
GT-2-95 18 13.5 95 44
GT-2-120 20 15 100 47
GT-2-150 22 17 105 49
GT-2-185 25 18.6 110 50
GT-2-240 27 21.5 120 55
GT-2-300 31 24 130 60
GT-2-400 34 27 140 65
