Copper lugs GTY series Cable link Terminals & lugs

GTY copper cable link for low voltage copper cables, tin-plated 99.9% copper ensures corrosion resistance, secure intermediate connections, and reliable electrical performance in power distribution systems.

Request a Quote

Application

GTY cable link used for intermediate connection of copper cables in low voltage.

 Material:CU≥99.9%

Sudface:tin plated

 Datas

GTY-1 Type                                                                              GTY-2 Type

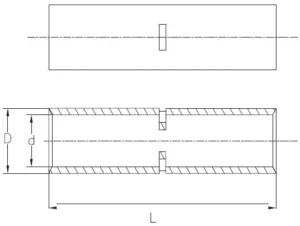

Copper lugs GTY series Cable link Terminals & lugs (3) Copper lugs GTY series Cable link Terminals & lugs (4) Copper lugs GTY series Cable link Terminals & lugs (5)

Type D±0.5 d±0.3 L±2
GTY-1(2)-1.5 3.7 1.8 20
GTY-1(2)-2.5 4 2.5 20
GTY-1(2)-4 4.8 3.1 20
GTY-1(2)-6 5.5 3.8 25
GTY-1(2)-10 6.8 5.4 30
GTY-1(2)-16 7.5 6.1 35
GTY-1(2)-25 9 7.4 40
GTY-1(2)-35 10.5 8.9 45
GTY-1(2)-50 12 9.9 50
GTY-1(2)-70 14 11.6 55
GTY-1(2)-95 17 14.2 60
GTY-1(2)-120 19.5 16.5 65
GTY-1(2)-150 20.5 17.5 70
GTY-1(2)-185 23.5 20.1 75
GTY-1(2)-240 26 22.2 80
GTY-1(2)-300 30 25.4 85
GTY-1(2)-400 34 28.6 90
GTY-1(2)-500 38 32 100
GTY-1(2)-630 45 35 110
