Copper lugs OT series Terminals & lugs

OT copper lug for connecting copper conductors in distribution equipment, made of high-conductivity copper for low resistance, secure crimping, and long-term reliable electrical performance.

Request a Quote

Application

Suitable for the connection of copper conductors in distribution equipment.

Datas

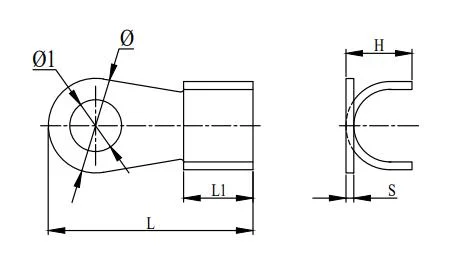

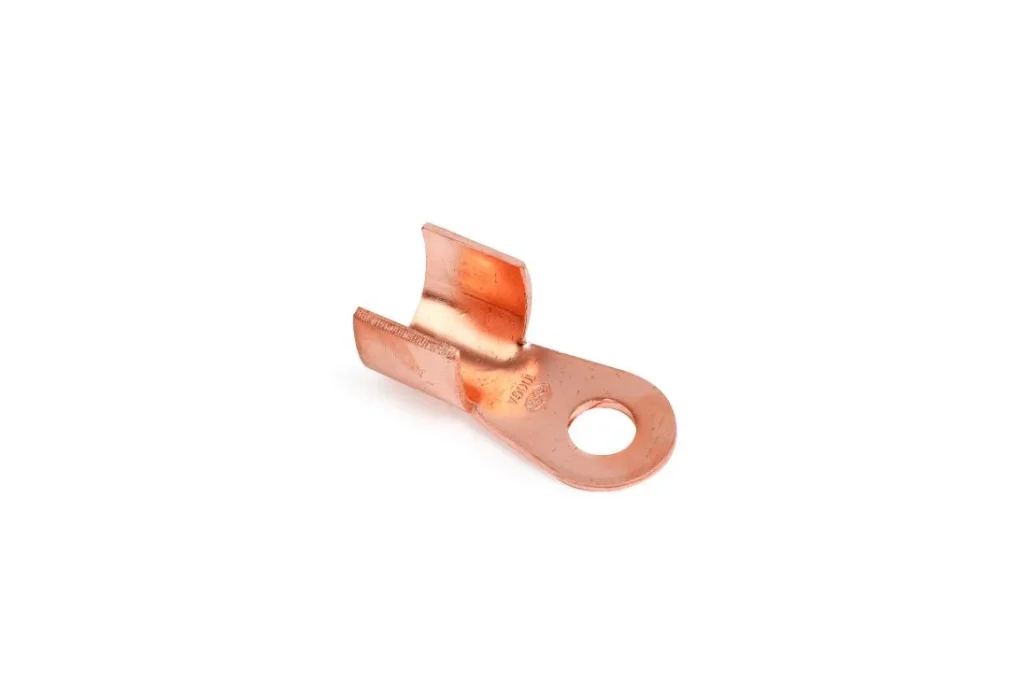

Copper lugs OT series Terminals & lugs (2) Copper lugs OT series Terminals & lugs (3)

Type L L1 b R R1 φ
OT-10A 14.5 6 0.8 4.5 2 5.2
OT-20A 17 7 1 5.5 2.5 6.2
OT-30A 19 8.2 1.2 5.8 3.2 6.2
OT-40A 19.5 9 1.2 6.2 3.5 6.2
OT-50A 21.5 9 1.2 6.5 3.5 6.2
OT-60A 23 10 1.4 7 4 8.2
OT-80A 25 11 1.5 8 4.5 8.2
OT-100A 29 12 1.5 8.5 5 8.2
OT-150A 31 12 1.6 9 5.5 10.2
OT-200A 33 14 1.7 10 6 10.2
OT-250A 36 15.5 2 10.5 6.5 10.2
OT-300A 40 16 2 11.5 7 12.2
OT-400A 43 18 2.2 13 8 14.2
OT-500A 46 20 2.4 14.5 8.5 14.2
OT-600A 50.5 22 2.8 16 10.5 16.2
OT-800A 61 26 3.2 17.5 12.5 18.2
OT-1000A 66 33 3.8 20.5 15.5 18.2
