Copper lugs SC series JGY Terminals & lugs

SC JGY copper lug for low voltage equipment connections, tin-plated 99.9% copper with viewing window for correct conductor placement, ensuring secure, low-resistance and reliable electrical terminations.

Request a Quote

Application

Used for connection of copper cable with copper end of electrical equipment in low voltage.

Material:Cu≥99.9%

Surface:tin plated

Feature

There is a rectangular viewing window on bevel for checking the location of conductor.

 Datas

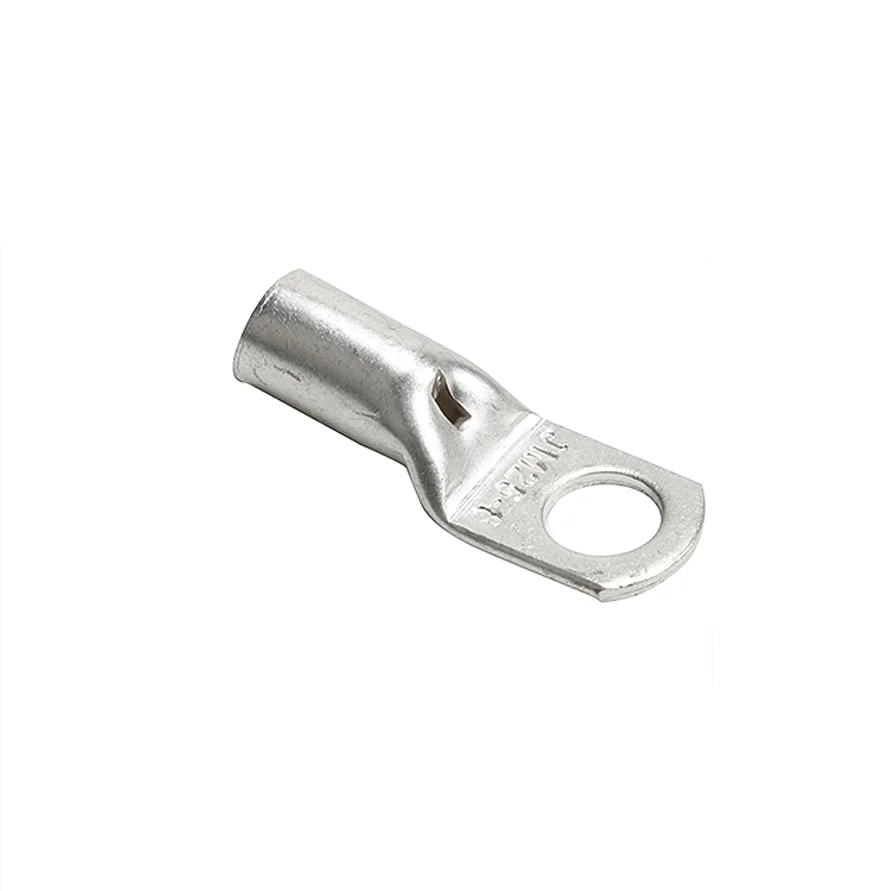

Copper lugs SC series JGY Terminals & lugs (1) Copper lugs SC series JGY Terminals & lugs (2)

Type φ±0.5 D±0.5 d±0.5 L±2
SC(JGY)-6 φ5.2,φ6.2,φ8.2 5.5 4.1 24
SC(JGY)-10 φ6.2,φ8.2 6.5 5.1 28
SC(JGY)-16 φ6.2,φ8.2,φ10.5 8 6.4 33
SC(JGY)-25 φ6.2,φ8.2,φ10.5 9 7 36
SC(JGY)-35 φ6.2,φ8.2,φ10.5,φ12.5 10.5 8.5 42
SC(JGY)-50 φ8.2,φ10.5,φ12.5 12 9.8 49
SC(JGY)-70 φ8.2,φ10.5,φ12.5 14.5 11.9 55
SC(JGY)-95 φ10.5,φ12.5 16 13 60
SC(JGY)-120 φ12.5,φ16.5 19 15.4 67
SC(JGY)-150 φ12.5,φ16.5 20.5 16.7 73
SC(JGY)-185 φ16.5 23.5 19.3 78
SC(JGY)-240 φ16.5 26 21.1 92
SC(JGY)-300 φ16.5,φ20.5 30 24 102
SC(JGY)-400 φ16.5,φ20.5 34 27.6 113
SC(JGY)-500 φ16.5,φ20.5 38 31.6 123
SC(JGY)-630 φ20.5 45 37.6 145
