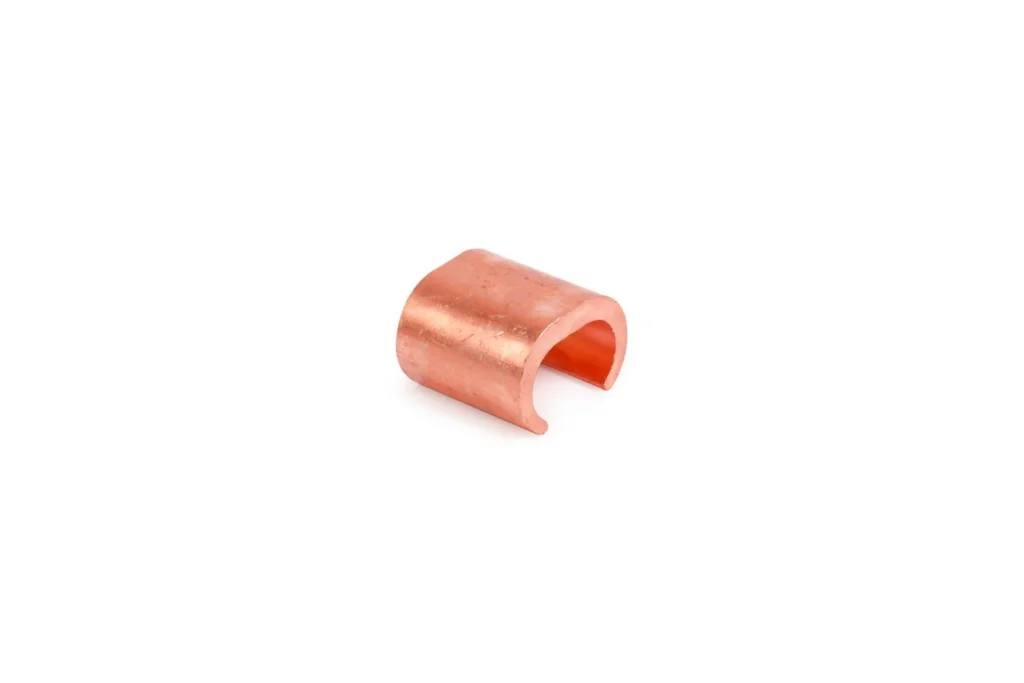

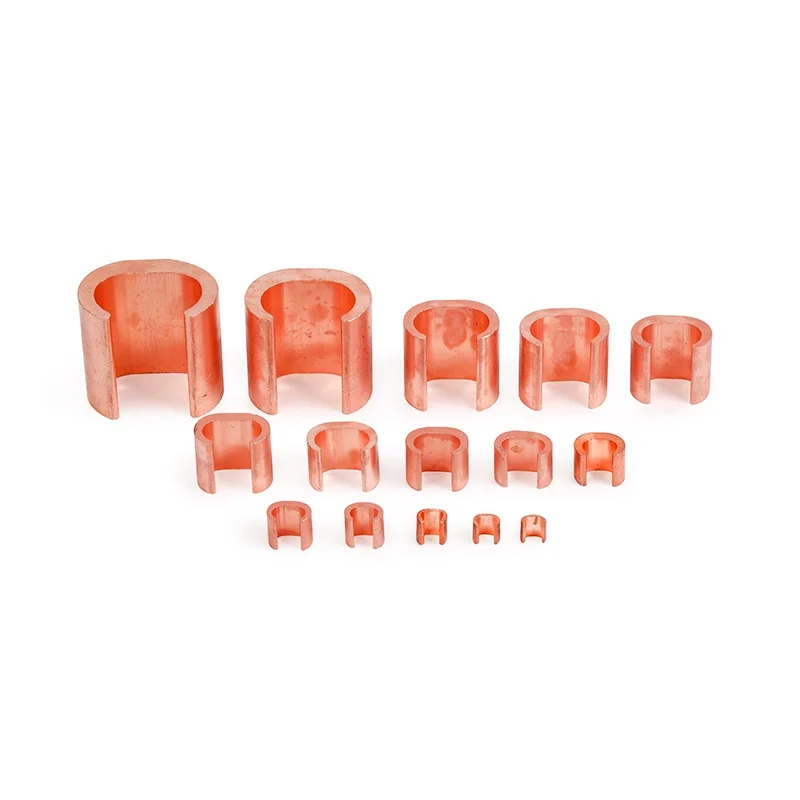

Crimp clamp CCT Special clamp
CCT crimp clamp for copper conductors and deadending, made of pure electrolytic copper with high corrosion resistance and excellent fault current capacity, easy installation with standard crimping tools.
Application
Crimp clamp CCT,designed to be gripped in the jaws or dies of installation tool,and then slipped directly over line for easy installation,also used for deadending.
Structure Feature
- Made of pure electrolytic copper
- High withstand to corrosion in or above the ground
- High capacity to flow fault-currents
- Available for copper conductors
Datas
| Type | Conductor(mm²） | Dimensions(mm) | ||||
| A | H | L | b | c | ||
| CCT-16 | 14.5-16 | 12 | 6 | 13 | 2 | 6.8 |
| CCT-20 | 16.5-20 | 13 | 9.7 | 13 | 2 | 6.8 |
| CCT-26 | 21-26 | 14.7 | 10.5 | 16.2 | 2.3 | 6.8 |
| CCT-44 | 27-44 | 18.5 | 14.4 | 18.8 | 3.7 | 8.7 |
| CCT-60 | 45-60 | 21 | 14.7 | 19.7 | 4 | 10.6 |
| CCT-76 | 61-76 | 24.5 | 17 | 21 | 5.3 | 12 |
| CCT-98 | 77-98 | 28 | 18.8 | 23 | 5.3 | 13.9 |
| CCT-122 | 99-122 | 30 | 21.2 | 25.5 | 5.5 | 14 |
| CCT-154 | 123-154 | 34 | 22.3 | 28 | 6 | 18.5 |
| CCT-190 | 155-190 | 36.3 | 23.4 | 34.3 | 5.4 | 17 |
| CCT-240 | 191-240 | 39.8 | 26 | 38.7 | 6.7 | 19.4 |
| CCT-288 | 141-288 | 44 | 29.5 | 43.8 | 7 | 22.7 |
| CCT-365 | 289-365 | 47.2 | 32.5 | 48.3 | 6.5 | 24 |
| CCT-450 | 366-450 | |||||
| CCT-560 | 451-560 | 62 | 44 | 62 | 11 | 31.5 |
| CCT-700 | 561-700 | 68.2 | 50 | 67 | 12.3 | 34.6 |
