A04 Neutral Bar with Blue Fixing Part

A04 Series terminal block with brass conductor, galvanized screws, and ABS housing. Rated 250–450V, -20°C to 70°C, flame retardant, impact-resistant, screw-mounted, available in blue, green, or custom colors.

Request a Quote

A04 Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. ABS with heat resistance, low-temperature resistance, flame retardant, high strength, and impact resistance
  4. Operating temperature: -20°C to 70°C
  5. Applicable voltage range: 250–450V
  6. Installation method: Screw fixation
  7. Plastic color: Standard colors are blue and green; other colors available on request

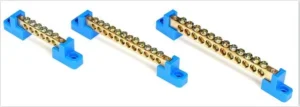

NHA04 Neutral Bar with Blue Fixing Part (3)

Model Ways Spec  (mm) L1
(mm)		 W
(mm)		 H
(mm)		 L2 Installation
Dimension (mm)		 M
Screws		 Ф
Diameter(mm)
A04/6-0609 6 6*9 85 12.5 22 72 4*7 5.3
A04/8-0609 8 6*9 98 12.5 22 85 4*7 5.3
A04/10-0609 10 6*9 111 12.5 22 98 4*7 5.3
A04/12-0609 12 6*9 124 12.5 22 112 4*7 5.3
A04/14-0609 14 6*9 137 12.5 22 124 4*7 5.3
A04/16-0609 16 6*9 150 12.5 22 137 4*7 5.3
A04/20-0609 20 6*9 176 12.5 22 164 4*7 5.3
A04/6-0711 6 7*11 98 12.5 24 85 5*9 6.5
A04/8-0711 8 7*11 114 12.5 24 102 5*9 6.5
A04/10-0711 10 7*11 130 12.5 24 117 5*9 6.5
A04/12-0711 12 7*11 145.5 12.5 24 133 5*9 6.5
A04/14-0711 14 7*11 157.5 12.5 24 145 5*9 6.5
A04/16-0711 16 7*11 173 12.5 24 161 5*9 6.5
A04/20-0711 20 7*11 203 12.5 24 191 5*9 6.5
A04/6-0812 6 8*12 98 12.5 25 85 5*10 6.5
A04/8-0812 8 8*12 114 12.5 25 102 5*10 6.5
A04/10-0812 10 8*12 130 12.5 25 117 5*10 6.5
A04/12-0812 12 8*12 145.5 12.5 25 133 5*10 6.5
A04/14-0812 14 8*12 157.5 12.5 25 145 5*10 6.5
A04/16-0812 16 8*12 173 12.5 25 161 5*10 6.5
A04/20-0812 20 8*12 203 12.5 25 191 5*10 6.5

NHA04 Neutral Bar with Blue Fixing Part (2)
