Terminal With Fixing Part

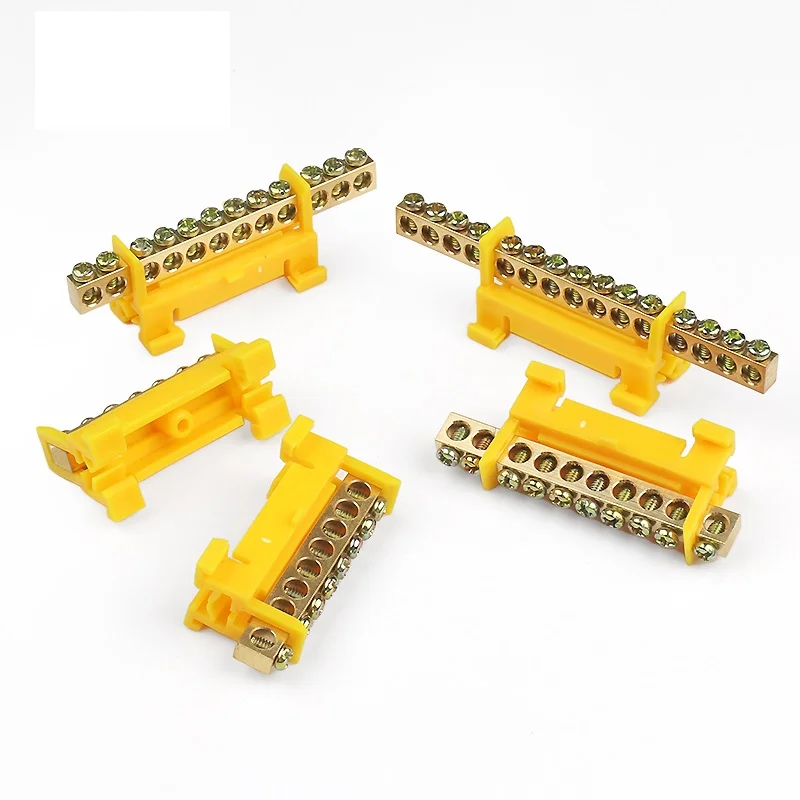

A03 Neutral Bar Link Mounted With Din Rail

A03 Series DIN rail terminal block with brass conductor, galvanized iron screw and PP insulation. Rated 250–450V, operating -40°C to 65°C, chemically resistant, reliable electrical insulation, easy 35mm DIN rail installation, blue/green or custom colors.

Request a Quote

A03 Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. PP (Polypropylene) with excellent chemical resistance and electrical insulation, outstanding elasticity, toughness, and fatigue resistance
  4. Operating temperature: -40°C to 65°C
  5. Applicable voltage range: 250–450V
  6. Installation method: 35mm DIN rail
  7. Plastic color: Standard colors are blue and green; other colors available on request

NHA03 Neutral Bar Link Mounted With Din Rail (3)

Model Ways Spec  (mm) L1
(mm)		 W
(mm)		 H
(mm)		 L2 Installation
Dimension (mm)		 M
Screws		 Ф
Diameter(mm)
A03/7-0609 7 6*9 51 23 27 35 4*7 5.3
A03/8-0609 8 6*9 59 23 27 35 4*7 5.3
A03/10-0609 10 6*9 73 23 27 35 4*7 5.3
A03/12-0609 12 6*9 86 23 27 35 4*7 5.3
A03/15-0609 15 6*9 106 23 27 35 4*7 5.3
A03/18-0609 18 6*9 126 23 27 35 4*7 5.3

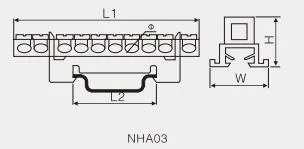

NHA03 Neutral Bar Link Mounted With Din Rail (2)
