Terminal With Fixing Part

YL07 Neutral Bar with Yellow Holder

YL07 Series terminal block with brass conductor, galvanized screws, and PP housing. Rated 250–450V, -40°C to 65°C, chemically resistant, elastic, fatigue-resistant, screw-mounted, available in blue, green, or custom colors.

Request a Quote

A07 Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. PP (Polypropylene) with excellent chemical resistance and electrical insulation, outstanding elasticity, toughness, and fatigue resistance
  4. Operating temperature: -40°C to 65°C
  5. Applicable voltage range: 250–450V
  6. Installation method: Screw fixation
  7. Plastic color: Standard colors are blue and green; other colors available on request

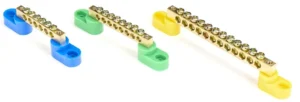

NHA07 Neutral Bar with Yellow Holder (3)

Model Ways Spec  (mm) L1
(mm)		 W
(mm)		 H
(mm)		 L2 Installation
Dimension (mm)		 M
Screws		 Ф
Diameter(mm)
A07/6-0609 6 6*9 88 15 26 76 4*7 5.3
A07/8-0609 8 6*9 101 15 26 89 4*7 5.3
A07/10-0609 10 6*9 114 15 26 102 4*7 5.3
A07/12-0609 12 6*9 127 15 26 115 4*7 5.3
A07/14-0609 14 6*9 140 15 26 128 4*7 5.3
A07/16-0609 16 6*9 153 15 26 141 4*7 5.3
A07/20-0609 20 6*9 180 15 26 168 4*7 5.3
A07/6-0711 6 7*11 102 15 28 89 5*9 6.5
A07/8-0711 8 7*11 118 15 28 105 5*9 6.5
A07/10-0711 10 7*11 134 15 28 121 5*9 6.5
A07/12-0711 12 7*11 149 15 28 136 5*9 6.5
A07/14-0711 14 7*11 161 15 28 148 5*9 6.5
A07/16-0711 16 7*11 177 15 28 164 5*9 6.5
A07/20-0711 20 7*11 207 15 28 194 5*9 6.5
A07/6-0812 6 8*12 102 15 29 89 5*10 6.5
A07/8-0812 8 8*12 118 15 29 105 5*10 6.5
A07/10-0812 10 8*12 134 15 29 121 5*10 6.5
A07/12-0812 12 8*12 149 15 29 136 5*10 6.5
A07/14-0812 14 8*12 161 15 29 148 5*10 6.5
A07/16-0812 16 8*12 177 15 29 164 5*10 6.5
A07/20-0812 20 8*12 207 15 29 194 5*10 6.5

NHA07 Neutral Bar with Yellow Holder (2)
