Terminal With Fixing Part

A11 Neutral Bar Link Screw Brass Mounted With Din Rail

A11 Series DIN rail terminal block with brass conductor, galvanized screws, and UL94V-2 PA66 housing. Rated 250–450V, -30°C to 110°C, flame retardant, high strength, excellent electrical performance, easy 35mm DIN rail installation, available in blue, green, or custom colors

Request a Quote

A11 Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. PA (Nylon 66), flame retardant with UL94V-2 rating, high strength, excellent high-temperature and electrical performance, crack-resistant
  4. Operating temperature: -30°C to 110°C
  5. Applicable voltage range: 250–450V
  6. Installation method: 35mm DIN rail
  7. Plastic color: Standard colors are blue and green; other colors available on request

NHA11 Neutral Bar Link Screw Brass Mounted With Din Rail (3)

Model Ways Spec  (mm) L1
(mm)		 W
(mm)		 H
(mm)		 L2 Installation
Dimension (mm)		 M
Screws		 Ф
Diameter(mm)
A11/7-0609 7 6*9 69.5 23 26 35 4*7 5.3
A11/8-0609 8 6*9 69.5 23 26 35 4*7 5.3
A11/10-0609 10 6*9 78 23 26 35 4*7 5.3
A11/12-0609 12 6*9 86 23 26 35 4*7 5.3
A11/15-0609 15 6*9 106 23 26 35 4*7 5.3
A11/18-0609 18 6*9 126 23 26 35 4*7 5.3

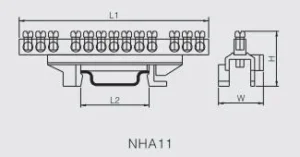

NHA11 Neutral Bar Link Screw Brass Mounted With Din Rail (2)
