A22 Screw Terminal Neutral Bar with Black Bracket

A22 Series terminal block with brass conductor, galvanized screws, and UL94V-2 PA66 housing. Rated 250–450V, -40°C to 65°C, flame retardant, high strength, excellent electrical performance, secure screw mounting, available in blue, green, or custom colors.

Request a Quote

A22 Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. PA (Nylon 66), flame retardant with UL94V-2 rating, high strength, excellent high-temperature and electrical performance, crack-resistant
  4. Operating temperature: -40°C to 65°C
  5. Applicable voltage range: 250–450V
  6. Installation method: Screw fixation
  7. Plastic color: Standard colors are blue and green; other colors available on request

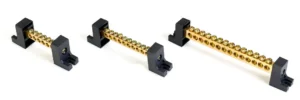

NHA22 Screw Terminal Neutral Bar with Black Bracket (2)

Model Ways Spec  (mm) L1
(mm)		 W
(mm)		 H
(mm)		 L2 Installation
Dimension (mm)		 M
Screws		 Ф
Diameter(mm)
A22/6-0609 6 6*9 85 17.5 31 77 4*7 5.3
A22/8-0609 8 6*9 97 17.5 31 89 4*7 5.3
A22/10-0609 10 6*9 112 17.5 31 103 4*7 5.3
A22/12-0609 12 6*9 124 17.5 31 115 4*7 5.3
A22/14-0609 14 6*9 137 17.5 31 128 4*7 5.3
A22/16-0609 16 6*9 150 17.5 31 141 4*7 5.3
A22/20-0609 20 6*9 176 17.5 31 168 4*7 5.3
A22/6-0711 6 7*11 98 17.5 31 90 5*9 6.5
A22/8-0711 8 7*11 114 17.5 31 105 5*9 6.5
A22/10-0711 10 7*11 130 17.5 31 121 5*9 6.5
A22/12-0711 12 7*11 146 17.5 31 137 5*9 6.5
A22/14-0711 14 7*11 158 17.5 31 149 5*9 6.5
A22/16-0711 16 7*11 174 17.5 31 165 5*9 6.5
A22/20-0711 20 7*11 203 17.5 31 194 5*9 6.5
A22/6-0812 6 8*12 98 17.5 31 90 5*10 6.5
A22/8-0812 8 8*12 114 17.5 31 105 5*10 6.5
A22/10-0812 10 8*12 130 17.5 31 121 5*10 6.5
A22/12-0812 12 8*12 146 17.5 31 137 5*10 6.5
A22/14-0812 14 8*12 158 17.5 31 149 5*10 6.5
A22/16-0812 16 8*12 174 17.5 31 165 5*10 6.5
A22/20-0812 20 8*12 203 17.5 31 194 5*10 6.5
