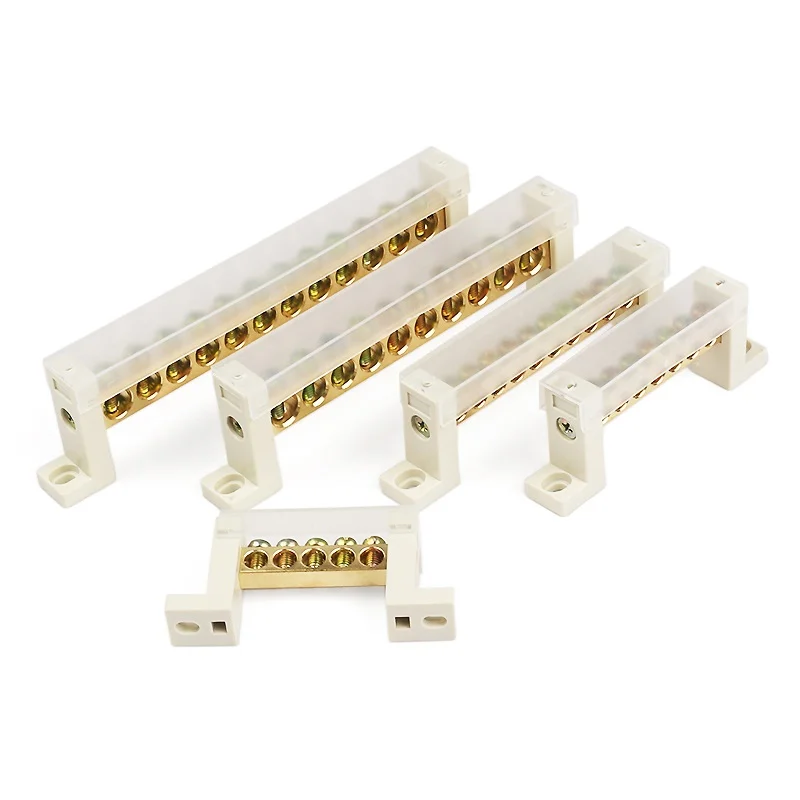

A23 Bridge Type Neutral Bar With Transparent Plastic Cover

A23 Series terminal block with brass conductor, galvanized screws, and PP or ABS housing options. Rated 250–450V, operating from -40°C to 65°C (PP) or -20°C to 70°C (ABS), flame retardant, impact-resistant, secure screw mounting, standard gray or custom colors.

A23 Series

Conductor: Brass
Screw: Galvanized iron
PP (Polypropylene) with excellent chemical resistance and electrical insulation, outstanding elasticity, toughness, and fatigue resistance
Operating temperature: -40°C to 65°C (PP)
ABS with heat resistance, low-temperature resistance, flame retardant, high strength, and impact resistance
Operating temperature: -20°C to 70°C (ABS)
Applicable voltage range: 250–450V
Installation method: Screw fixation
Plastic color: Standard color is gray; other colors available on request

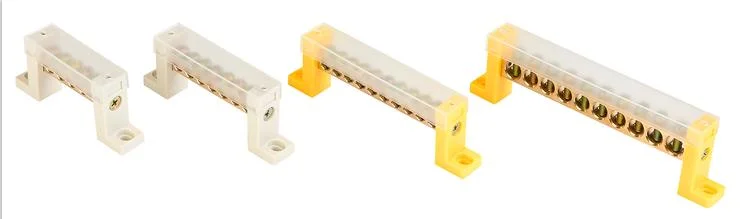

NHA23 Bridge Type Netural Bar With Transparent Plastic Cover (3)

Model	Ways	Spec (mm)	L1 (mm)	W (mm)	H (mm)	L2 Installation Dimension (mm)	M Screws	Ф Diameter(mm)
A23/3-0710	3	7*10	62	18	36.5	51	5*8	6.5
A23/4-0710	4	7*10	70	18	36.5	59	5*8	6.5
A23/5-0710	5	7*10	78	18	36.5	67	5*8	6.5
A23/6-0710	6	7*10	86	18	36.5	75	5*8	6.5
A23/7-0710	7	7*10	94	18	36.5	83	5*8	6.5
A23/8-0710	8	7*10	102	18	36.5	91	5*8	6.5
A23/10-0710	10	7*10	118	18	36.5	107	5*8	6.5
A23/12-0710	12	7*10	134	18	36.5	123	5*8	6.5
A23/15-0710	15	7*10	158	18	36.5	147	5*8	6.5
A23/3-0814	3	8*14	74	18	41.5	64	5*12	9(10*2)
A23/4-0814	4	8*14	85	18	41.5	75	5*12	9(10*2)
A23/5-0814	5	8*14	96	18	41.5	86	5*12	9(10*2)
A23/6-0814	6	8*14	107	18	41.5	97	5*12	9(10*2)
A23/7-0814	7	8*14	118	18	41.5	108	5*12	9(10*2)
A23/8-0814	8	8*14	129	18	41.5	119	5*12	9(10*2)
A23/10-0814	10	8*14	152	18	41.5	142	5*12	9(10*2)
A23/12-0814	12	8*14	174	18	41.5	164	5*12	9(10*2)
A23/15-0814	15	8*14	207	18	41.5	197	5*12	9(10*2)
