Terminal With Fixing Part

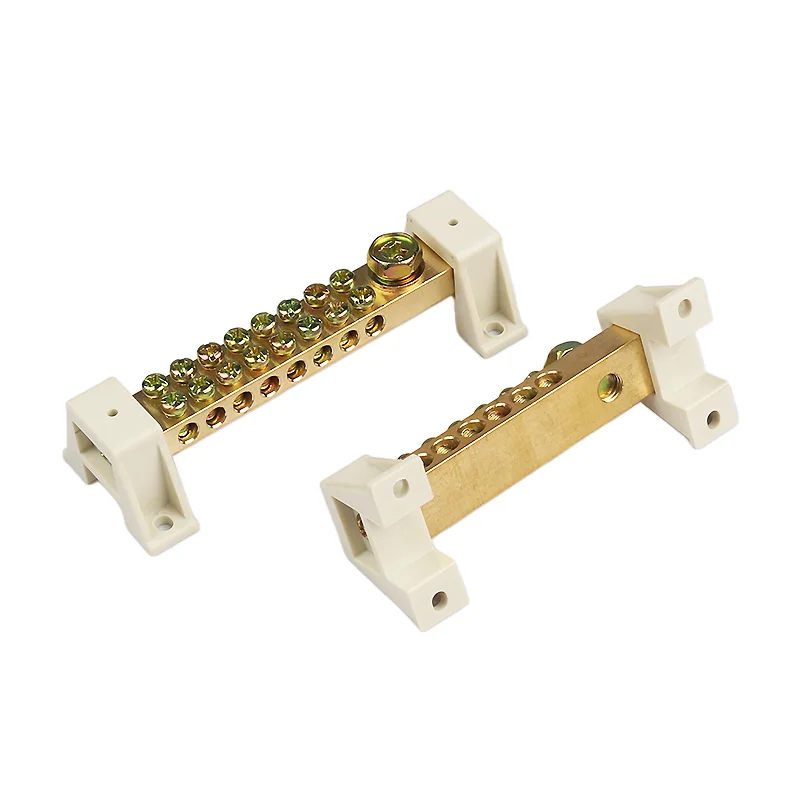

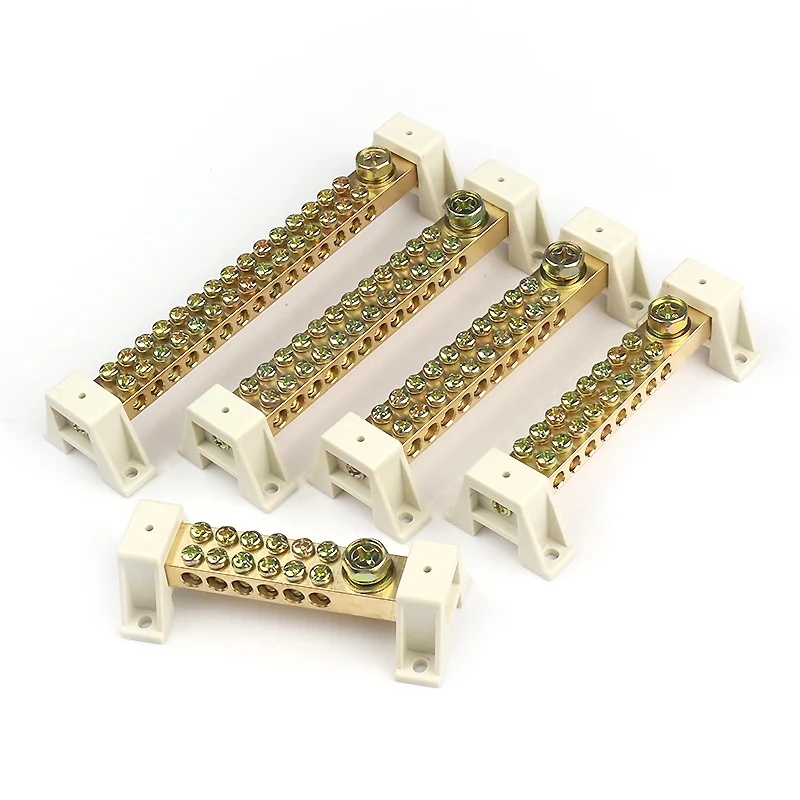

A24 Screw Terminal Neutral Bar with Grey Bracket

A24 Series terminal block with brass conductor, galvanized screws, and durable ABS housing. Rated 250–450V, operating from -20°C to 70°C, flame retardant, high strength, impact-resistant, secure screw mounting, available in blue, green, or custom colors.

Request a Quote

A24 Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. ABS with heat resistance, low-temperature resistance, flame retardant properties, high strength, and impact resistance
  4. Operating temperature: -20°C to 70°C
  5. Applicable voltage range: 250–450V
  6. Installation method: Screw fixation
  7. Plastic color: Standard colors are blue and green; other colors available on request

NHA24 Screw Terminal Neutral Bar with Grey Bracket (3)

Model Ways Spec  (mm) L1
(mm)		 W
(mm)		 H
(mm)		 L2 Installation
Dimension (mm)		 M
Screws		 Ф
Diameter(mm)
A21/1+6-0917 1+6 9*17 100 42 29 86 5*8 5.5
A21/1+8-0917 1+8 9*17 116 42 29 102 5*8 5.5
A21/1+10-0917 1+10 9*17 132 42 29 118 5*8 5.5
A21/1+12-0917 1+12 9*17 148 42 29 134 5*8 5.5
A21/1+15-0917 1+15 9*17 172 42 29 158 5*8 5.5
A21/1+6-1017 1+6 10*17 100 42 29 86 5*9 6.5
A21/1+8-1017 1+8 10*17 116 42 29 102 5*9 6.5
A21/1+10-1017 1+10 10*17 132 42 29 118 5*9 6.5
A21/1+12-1017 1+12 10*17 148 42 29 134 5*9 6.5
A21/1+15-1017 1+15 10*17 172 42 29 158 5*9 6.5
A21/1+6-1117 1+6 11*17 100 42 29 86 5*9 6.5
A21/1+8-1117 1+8 11*17 116 42 29 102 5*9 6.5
A21/1+10-1117 1+10 11*17 132 42 29 118 5*9 6.5
A21/1+12-1117 1+12 11*17 148 42 29 134 5*9 6.5
A21/1+15-1117 1+15 11*17 172 42 29 158 5*9 6.5

NHA24 Screw Terminal Neutral Bar with Grey Bracket (2)
