Terminal With Fixing Part

A25 Screw Terminal Neutral Bar With Cover

A25 Series terminal block with brass conductor, galvanized screws, and UL94V-2 PA66 housing. Rated 250–450V, -30°C to 110°C, flame retardant, high strength, excellent electrical performance, screw-mounted, standard gray or custom colors.

A25 Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. PA (Nylon 66), flame retardant with UL94V-2 rating, high strength, excellent high-temperature and electrical performance, crack-resistant
  4. Operating temperature: -30°C to 110°C
  5. Applicable voltage range: 250–450V
  6. Installation method: Screw fixation
  7. Plastic color: Standard color is gray; other colors available on request

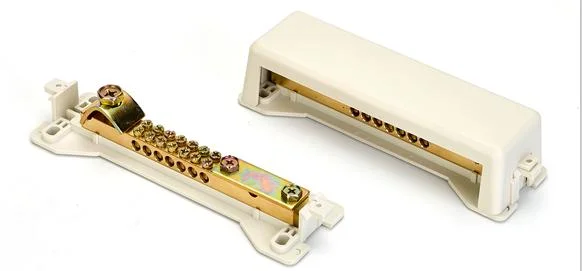

NHA25 Screw Terminal Neutral Bar With Cover (2)

Model Ways Spec  (mm) L1
(mm)
W
(mm)
H
(mm)
L2 Installation
Dimension (mm)
M
Screws
Ф
Diameter(mm)
A25/6-1014 6 10*14 183 52 42 150 5*8 6
