Terminal With Cover

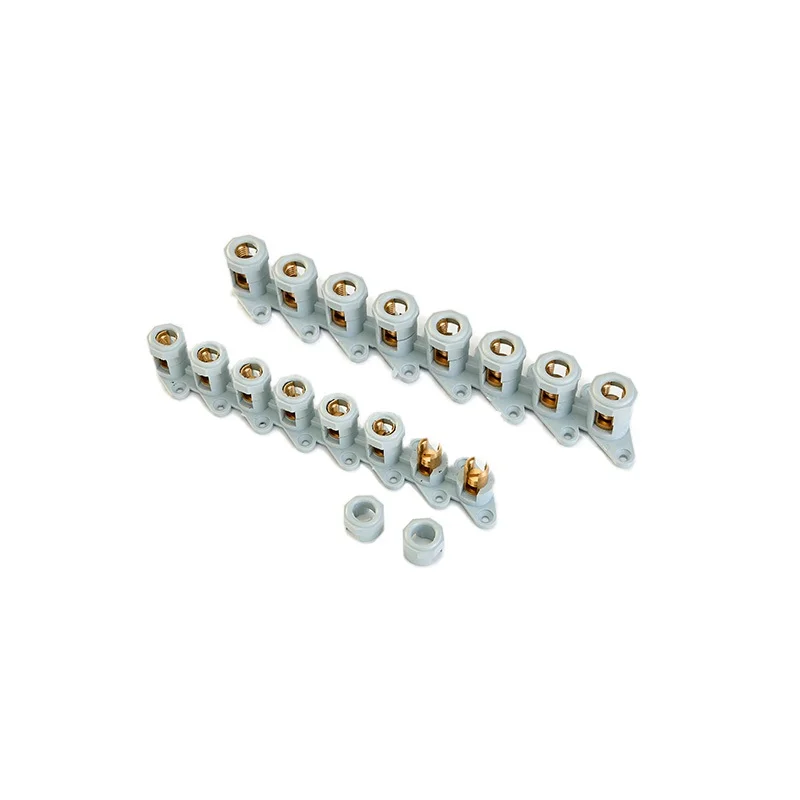

A29 8 Ways/Holes Insulated Stripg Block

A29 Series terminal block with brass conductor, galvanized screws, and UL94V-2 PA66 housing. Rated 250–450V, -30°C to 110°C, flame retardant, high strength, excellent electrical performance, screw-mounted, standard gray or custom colors.

Request a Quote

A29 Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. PA (Nylon 66), flame retardant with UL94V-2 rating, high strength, excellent high-temperature and electrical performance, crack-resistant
  4. Operating temperature: -30°C to 110°C
  5. Applicable voltage range: 250–450V
  6. Installation method: Screw fixation
  7. Plastic color: Standard color is gray; other colors available on request
NHA29 8 Ways Holes Insulated Stripg Block (2)
Model Ways L1
(mm)		 W
(mm)		 H
(mm)		 L2 Installation
Dimension (mm)		 Max. section
A28/16 8 16 173 24 L2(26mm)/L3(  mm )/L4(  mm ) 16㎡
A28/25 8 25 205 27 L2(31mm)/L3(  mm ) /L4(  mm ) 25㎡
A28/35 8 35 250 33 L2(41mm)/L3(  mm ) /L4(  mm ) 35㎡
A28/50 8 50 260 35 L2(41mm)/L3(  mm ) /L4(  mm ) 50㎡
A28/70 8 70 270 38 L2(42mm)/L3(  mm ) /L4(  mm ) 70㎡
