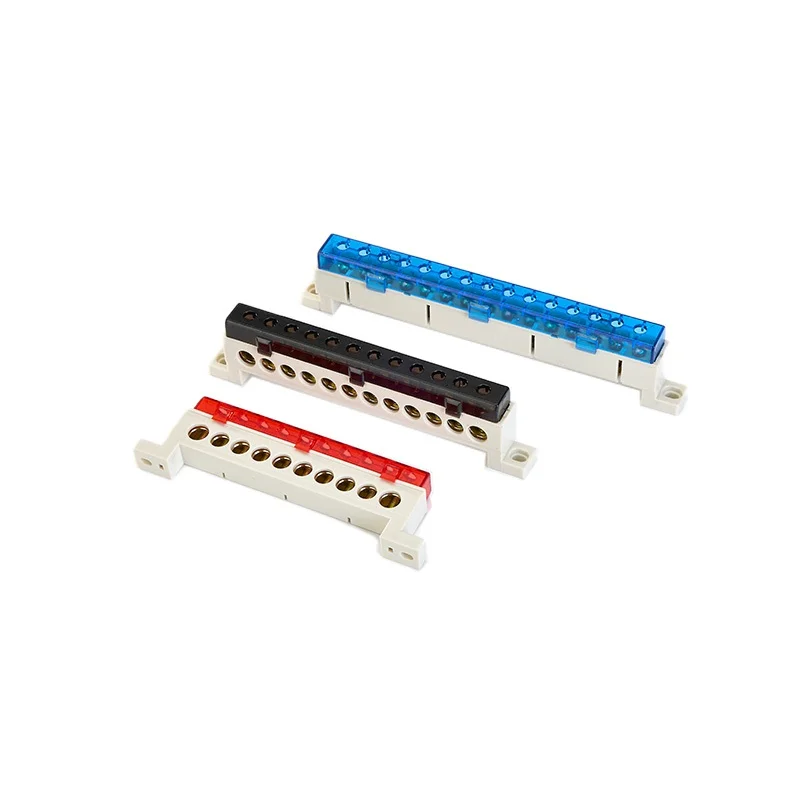

A10 Bridge Type Netural Bar With Colorized Full Plastic Cover

A10 Series terminal block with brass conductor, galvanized screws, and durable PC/ABS housing. Rated 250–450V, -40°C to 85°C (PC) and -20°C to 70°C (ABS), flame retardant, high strength, impact-resistant, screw-mounted, available in blue, green, or custom colors.

Request a Quote

A10 Series

Conductor: Brass
Screw: Galvanized iron
PC (Polycarbonate) with heat resistance, low-temperature resistance, flame retardant, high strength, and impact resistance
Operating temperature: -40°C to 85°C
ABS with heat resistance, low-temperature resistance, flame retardant, high strength, and impact resistance
Operating temperature: -20°C to 70°C
Applicable voltage range: 250–450V
Installation method: Screw fixation
Plastic color: Standard colors are blue and green; other colors available on request

NHA10 Bridge Type Netural Bar With Colorized Full Plastic Cover (3)

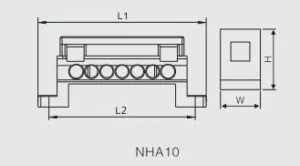

Model	Ways	Spec (mm)	L1 (mm)	W (mm)	H (mm)	L2 Installation Dimension (mm)	M Screws	Ф Diameter(mm)
A10/3-0711	3	7*10	57	15	37	46	5*9	6.5（7*2）
A10/4-0711	4	7*10	65	15	37	54	5*9	6.5（7*2）
A10/5-0711	5	7*10	73	15	37	62	5*9	6.5（7*2）
A10/6-0711	6	7*10	81	15	37	70	5*9	6.5（7*2）
A10/7-0711	7	7*10	89	15	37	78	5*9	6.5（7*2）
A10/8-0711	8	7*10	97	15	37	86	5*9	6.5（7*2）
A10/10-0711	10	7*10	113	15	37	102	5*9	6.5（7*2）
A10/12-0711	12	7*10	129	15	37	118	5*9	6.5（7*2）
A10/15-0711	15	7*10	153	15	37	142	5*9	6.5（7*2）
A10/5-0814	5	8*14	93	19	42.5	81	5*12	9（10*2)
A10/6-0814	6	8*14	103.5	20.5	42.5	92	5*12	9（10*2)
A10/7-0814	7	8*14	115.5	19	42.5	103	5*12	9（10*2)
A10/10-0814	10	8*14	148	19	42.5	136	5*12	9（10*2)
A10/12-0814	12	8*14	170	19	42.5	158	5*12	9（10*2)
A10/15-0814	15	8*14	202	20.5	42.5	191	5*12	9（10*2)
