Terminal With Fixing Part

A13 Neutral Bar with Blue Holder

A13 Series terminal block with brass conductor, galvanized screws, and PP housing. Rated 250–450V, -40°C to 65°C, chemically resistant, elastic, fatigue-resistant, screw-mounted, available in blue, green, or custom colors.

Request a Quote

A13 Series

  1. Conductor: Brass
  2. Screw: Galvanized iron
  3. PP (Polypropylene) with excellent chemical resistance and electrical insulation, outstanding elasticity, toughness, and fatigue resistance
  4. Operating temperature: -40°C to 65°C
  5. Applicable voltage range: 250–450V
  6. Installation method: Screw fixation
  7. Plastic color: Standard colors are blue and green; other colors available on request

NHA13 Neutral Bar with Blue Holder (3)

Model Ways Spec  (mm) L1
(mm)		 W
(mm)		 H
(mm)		 L2 Installation
Dimension (mm)		 M
Screws		 Ф
Diameter(mm)
A13/6-0609 6 6*9 40.5 28 29 4*7 5.3
A13/8-0609 8 6*9 53.5 28 29 4*7 5.3
A13/10-0609 10 6*9 66.5 28 29 45.5 4*7 5.3
A13/12-0609 12 6*9 79.5 28 29 58.5 4*7 5.3
A13/14-0609 14 6*9 92.5 28 29 58.5 4*7 5.3
A13/16-0609 16 6*9 105.5 28 29 71.5 4*7 5.3
A13/6-0711 6 7*11 52.5 28 32 5*9 6.5
A13/8-0711 8 7*11 69.5 28 32 5*9 6.5
A13/10-0711 10 7*11 86.5 28 32 59.5 5*9 6.5
A13/12-0711 12 7*11 103.5 28 32 76.5 5*9 6.5
A13/14-0711 14 7*11 120.5 28 32 76.5 5*9 6.5
A13/16-0711 16 7*11 137.5 28 32 93.5 5*9 6.5
A13/6-0812 6 8*12 52.5 28 33 5*10 6.5
A13/8-0812 8 8*12 69.5 28 33 5*10 6.5
A13/10-0812 10 8*12 86.5 28 33 59.5 5*10 6.5
A13/12-0812 12 8*12 103.5 28 33 76.5 5*10 6.5
A13/14-0812 14 8*12 120.5 28 33 76.5 5*10 6.5
A13/16-0812 16 8*12 137.5 28 33 93.5 5*10 6.5

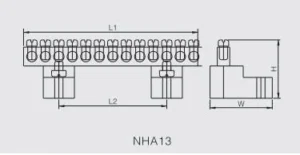

NHA13 Neutral Bar with Blue Holder (2)
