Fiber Optic Tension Clamp

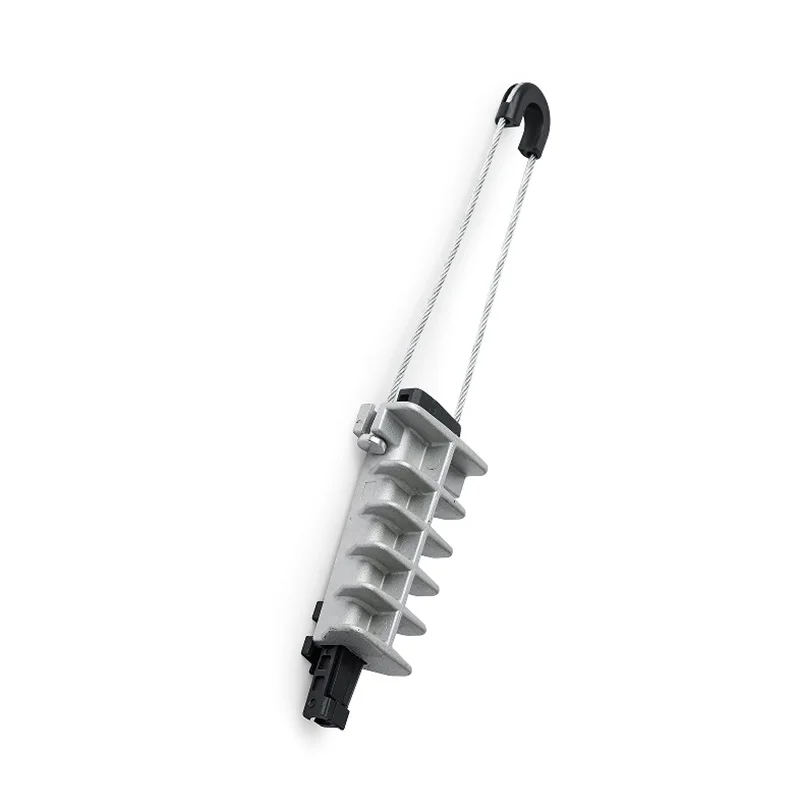

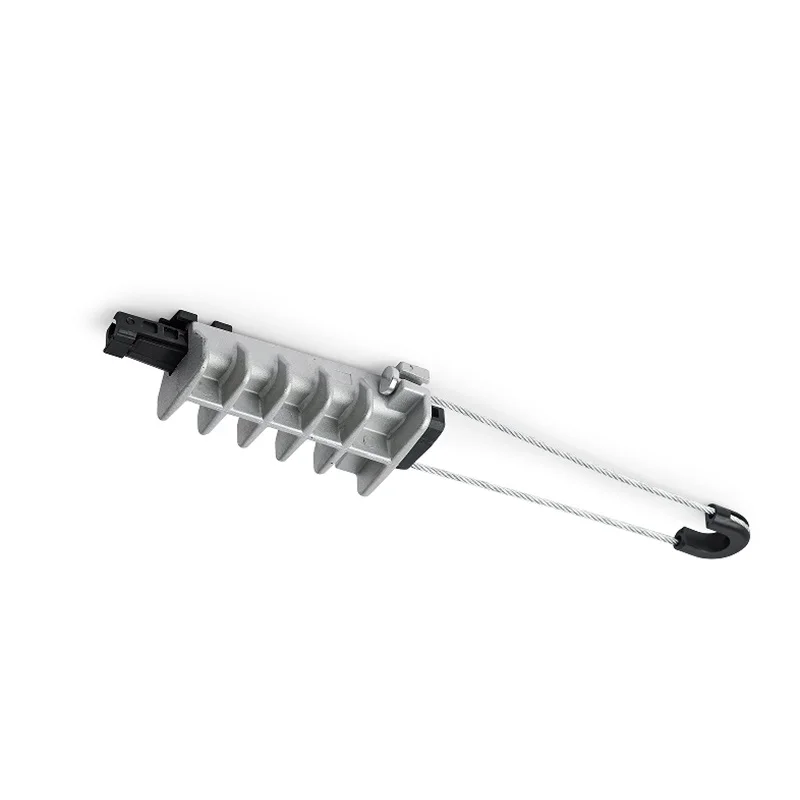

PAL series Dead end clamp

PAL dead end clamp for low voltage aerial cables with insulated neutral messenger, corrosion-resistant aluminum alloy body, stainless steel support, UV-resistant wedges, easy installation, EN 50483-3 and NF C33-041 compliant.

Request a Quote

Application

PAL tension clamp are used to anchor and tighten low voltage aerial cables with insulated neutral messenger.

Features

  1. Body is casted of corrosion resistant aluminum alloy with high mechanical strength.
  2. Metal support is made of stainless steel or steel.
  3. Wedges are made of weather resistant and anti-UV material with high mechanical strength.

 Standard:EN 50483-3,NF C33-041

Datas

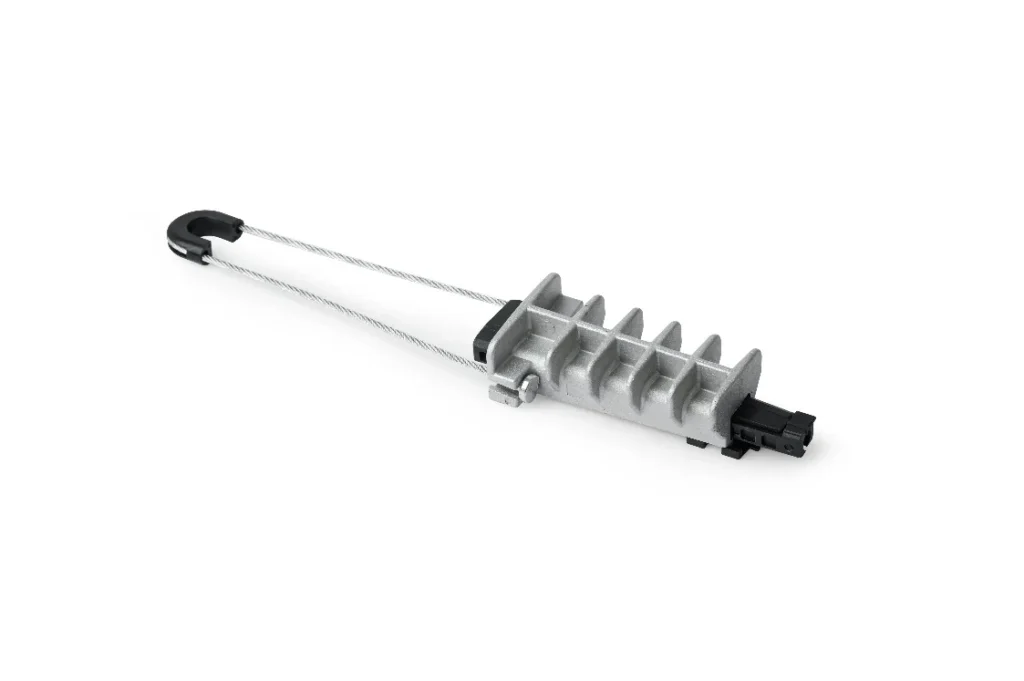

PAL series Dead end clamp (5)

Type Cross section(mm²） Breaking load
PAL35-1000 25-35 10kN
PAL50-1500 50-70 15kN
PAL70-2000 54-70 18kN
PAL95-2000 70-95 18kN

Notice:We provide a variety of bracket for Anchoring Assemblies.Specifications of bracket see anchor bracket.

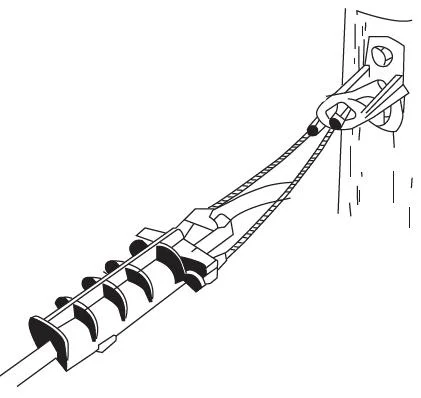

PAL series Dead end clamp (6)
