PAT series Dead end clamp

PAT dead end clamp for four-core self-supporting LV aerial cables, galvanized steel brace, UV-resistant high-strength wedges, spring-assisted insertion, secure bolted anchoring with no loose parts for safe installation.

Request a Quote

Application

PAT tension clamp are applicable to four-core self-supporting low voltage aerial cables.These clamps are used for anchoring and tightening insulated conductors.

Features

  1. Iron braces are made of steel strap with surface galcanized.
  2. Wedges are made of weather resistant and anti-UV material with high mechanical strength.
  3. Equipped with bolts.
  4. Strong springs between wedges facilitate the insertion of conductors.
  5. No loose parts could fall off during installation.

 Datas

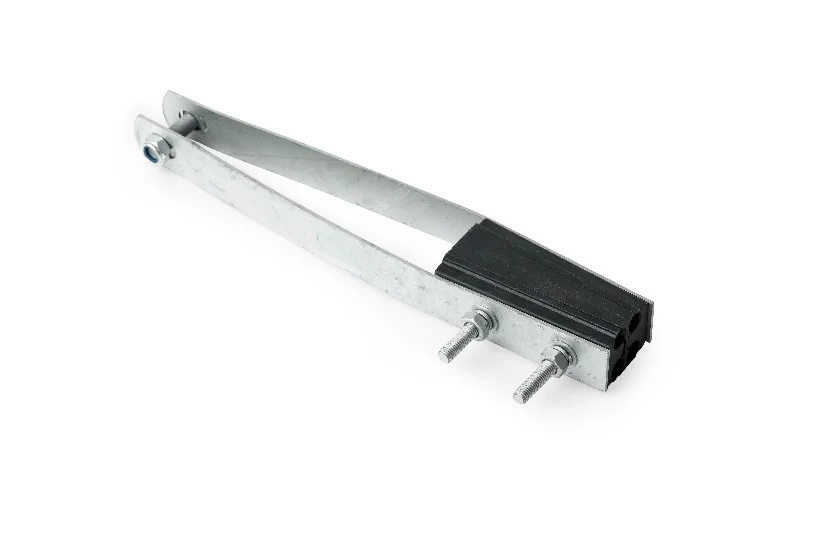

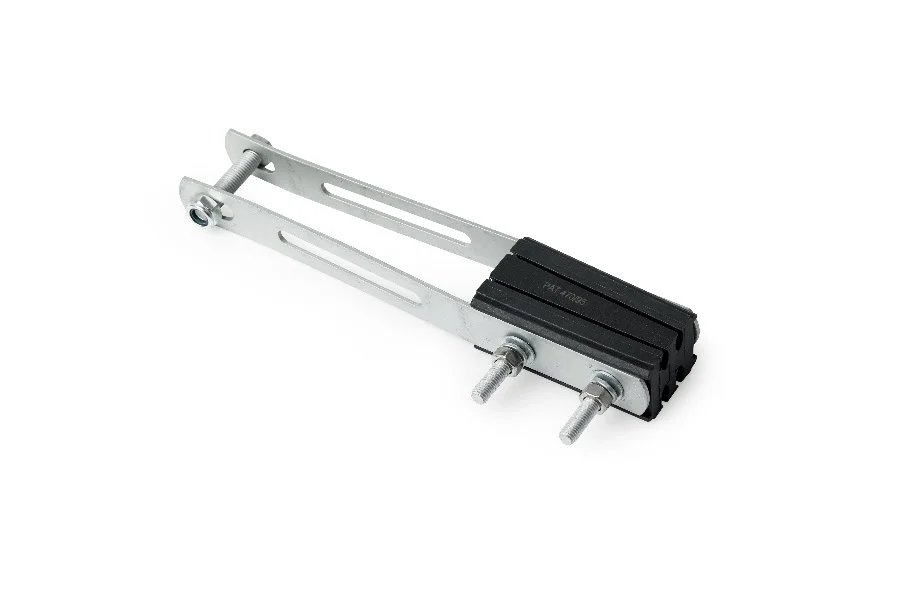

PAT series Dead end clamp (3)PAT series Dead end clamp (4)

Type Cross section(mm²） Messenger DIA.(mm) Breaking load
PAT 435/50 4*(35-50) 11-14 15kN
PAT 450/120 4*(50-120) 11-17 20kN
PAT 470/95 4*(70-95) 14-16 15kN
